Lightning Protection Hybrid Solar Inverter

Our Lightning Protection Hybrid Solar Inverter is designed for users who need a safer and more stable solar storage solution in regions where electrical instability, surge risk, or outdoor environmental influence is an important concern. This IU Series product combines high frequency inverter technology, MPPT solar charging, battery management, and protective design in one integrated unit.

Covering the practical 3.6KW to 6.2KW range, this series is suitable for residential energy storage, backup power, small commercial solar systems, and projects that need stronger input and output protection together with reliable solar power conversion. It is especially valuable when users want both stable output and enhanced safety design.

Compared with ordinary entry-level inverters, this model places more emphasis on protective structure, safer switching logic, stronger PV utilization, and cleaner system compatibility. For buyers who care about both safety and performance, it provides a more reassuring long-term solution.

Designed with lightning and high voltage protection features
Suitable for hybrid solar storage and backup applications
Stable pure sine wave output for household and system loads
Practical solution for residential and light commercial projects
Combines safety, solar charging, and power management in one unit

Why This Model Stands Out

In many solar applications, users do not only need higher efficiency. They also need stronger electrical protection, safer switching design, better compatibility with household loads, and more stable performance under changing power conditions. That is where this lightning-protection version becomes more attractive.

This series supports stronger PV input capability, improved inverter output strength, cleaner EMI performance, and safer input and output switching design. These details help improve the real operating confidence of the complete system.

For projects where system reliability and safety are both important, this type of hybrid inverter provides stronger value than a basic standard model.

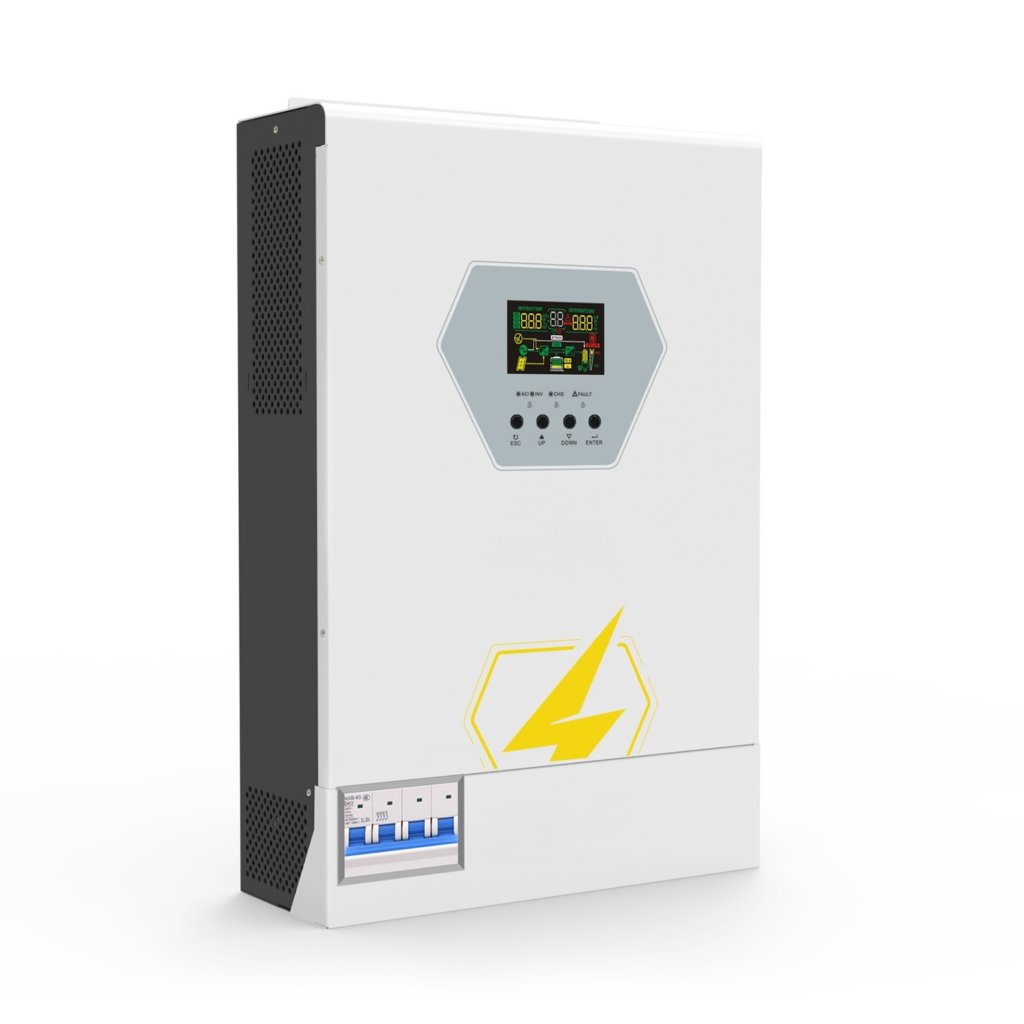

Product Detail / Main Feature Visual

Product Overview

Product Name	Lightning Protection Hybrid Solar Inverter	Series	IU Series 3.6KW–6.2KW
Type	High Frequency Hybrid Solar Inverter	Installation	Wall Mounted
Power Range	3.6KW / 5.5KW / 6.2KW	Output Waveform	Pure Sine Wave
Battery Voltage	24Vdc / 48Vdc	PV Charging Mode	MPPT
Max PV Input Power	6500W / 8500W	Max Efficiency	98%
Core Advantage	Lightning Protection + Safety Switching + Stronger PV Input	Application	Residential Storage, Backup Power, Small Commercial Solar Systems

Core Selling Points

Key Feature Image 1

Key Feature Image 2

Built with lightning and high voltage protection capability
Input and output safety switch design for safer daily operation
Higher PV input current supports stronger solar charging potential
Enhanced inverter output strength for wider load support
Improved PV and utility complementary operation for better energy utilization
EMI filtering design helps reduce interference
Pure sine wave output for more stable appliance compatibility
Suitable for projects that care about both performance and protection

Technical Data

Model	3624SMH	5548SMH	6248SMH
Battery Inverter Power	3600W	5500W	6200W
PV Inverter Power	4500W	6500W	6500W
Output Voltage	220/230/240VAC ±5%	220/230/240VAC ±5%	220/230/240VAC ±5%
Output Frequency	50/60Hz ±0.1%	50/60Hz ±0.1%	50/60Hz ±0.1%
Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Peak Power	7200VA	11000VA	12400VA
Battery Voltage	24Vdc	48Vdc	48Vdc
PV Charging Mode	MPPT	MPPT	MPPT
Max PV Input Power	6500W	8500W	8500W
Max PV Charging Current	120A	100A	120A
Max AC Charging Current	100A	100A	100A
Maximum Efficiency	98%	98%	98%

Note: Technical data above is organized from the uploaded IU Series material. Please adjust the final displayed details according to the exact version you decide to publish.

Application Scenario

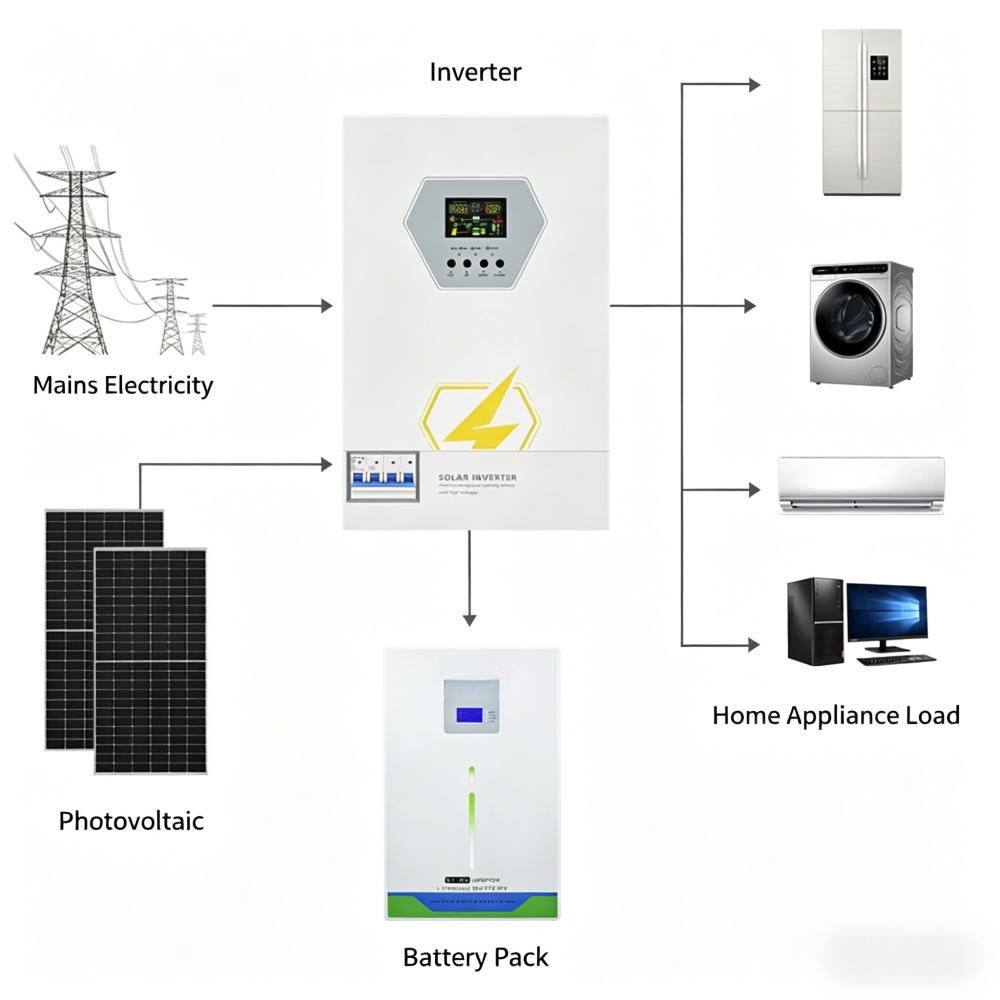

Lightning Protection Hybrid Solar Inverter Application Image

Application Scenario

This series is suitable for users who want a safer hybrid solar solution for residential and small commercial applications, especially in environments where surge risk, outdoor influence, or electrical instability must be considered more carefully.

With stronger protection-oriented design and efficient hybrid operation logic, it is a practical choice for home solar storage, backup power, shops, light offices, and small-scale projects that require both system performance and electrical safety confidence.

Residential solar storage systems
Home backup power applications
Small office and shop solar systems
Projects with stronger safety and protection needs
Hybrid PV and utility complementary systems

How to Select the Right Lightning Protection Inverter

Buyers should confirm total load size, battery voltage, PV input capacity, installation environment, and protection expectations before selecting a lightning protection hybrid inverter. In many projects, the right model is the one that balances output requirement and electrical safety, rather than simply having the highest rated power.

A well-matched inverter can improve daily reliability, reduce protection concerns, and support more practical system operation over the long term. This is especially important in projects where equipment protection and stable power supply are both critical.

Confirm load requirement and backup demand
Check battery voltage and solar array size
Consider installation environment and protection expectations
Match system design with required safety and hybrid functions

FAQ

1. What is the main advantage of this lightning protection hybrid inverter?

Its main advantage is combining hybrid solar energy management with stronger lightning and high voltage protection features.

2. Is it suitable for residential solar storage systems?

Yes. It is suitable for homes, backup systems, and small commercial applications that require both performance and stronger electrical safety.

3. What makes it different from a standard hybrid inverter?

It places more emphasis on protective design, safer switching, and stronger input and output security while maintaining hybrid inverter functionality.

4. What information is needed before model recommendation?

Please provide load size, battery requirement, PV configuration, installation condition, and protection expectations so we can recommend the right model.

Need a Lightning Protection Inverter Solution?

Tell us your load size, battery configuration, PV design, and project environment. We can help you choose the right lightning protection hybrid solar inverter and system solution.
