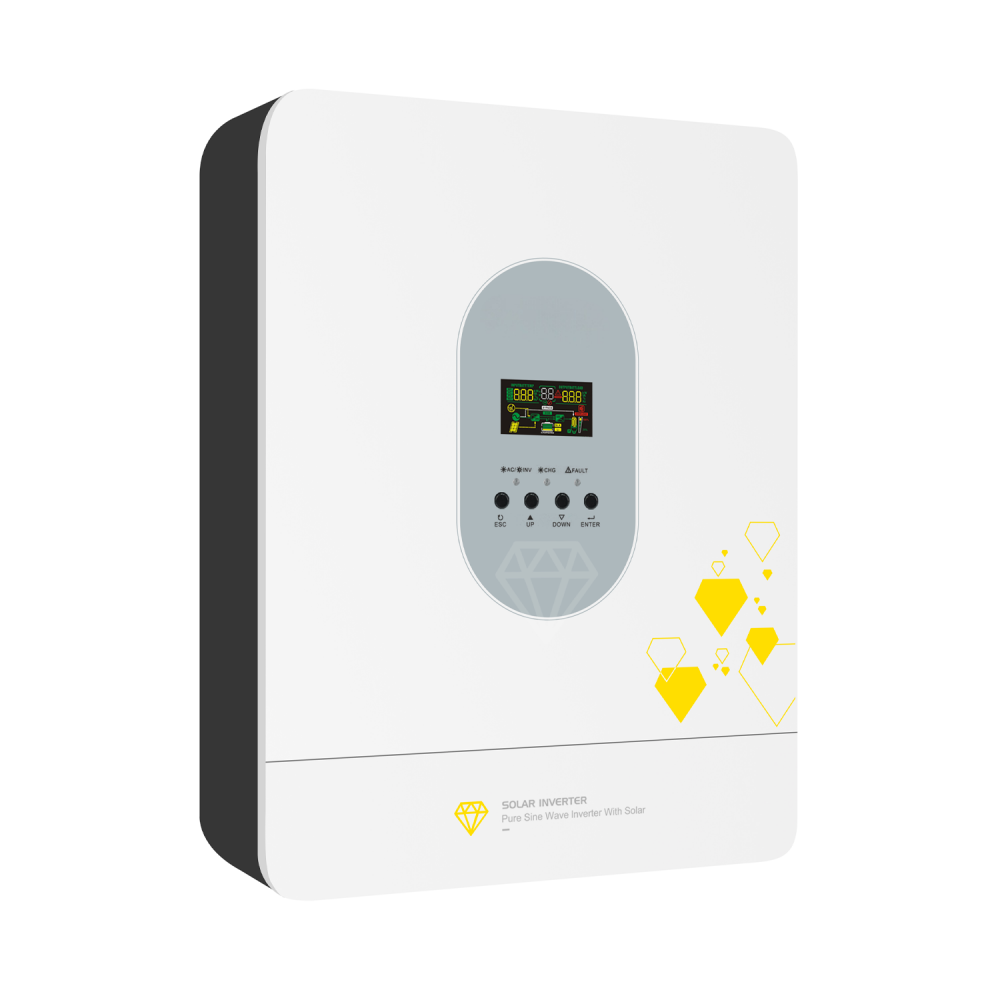

Main Product Image

Compact Hybrid Solar Inverter

Our Compact Hybrid Solar Inverter is designed for users who need a smaller, cleaner, and more practical solar power solution without giving up the key functions required in real daily operation. This ED Series combines inverter output, solar charging, battery management, and flexible system control in one compact unit, making it a practical choice for residential, outdoor, backup, and light-duty commercial applications.

Covering a wide power range from 1.6KW to 11KW, this series is suitable for users who want more flexibility in system size selection. From entry-level household backup to higher-power hybrid configurations, it provides a clear product path while maintaining a compact appearance, pure sine wave output, and practical operating features such as lithium battery communication, optional WiFi, generator dry contact, and multiple protection functions.

Compared with larger or more industrial-looking models, this series is more attractive for buyers who care about compact design, easier integration, and better cost-performance balance. It is especially suitable for projects where appearance, usability, and functional practicality are all important.

Compact hybrid inverter design for flexible installation
Wide power range from 1.6KW to 11KW
Pure sine wave output for wider load compatibility
Supports battery and selected no-battery system operation
Suitable for home, outdoor, and small backup power projects

Why This Series Is Easy to Sell

Many buyers do not always need the largest inverter. What they often want is a cleaner-looking product, practical daily functions, stable pure sine wave output, and enough flexibility to fit different batteries, solar panels, and load conditions. This series answers that need very well.

Its compact rounded design makes the product feel more refined, while the practical function set keeps it useful for real projects. Optional WiFi, lithium communication, generator dry contact, multiple protections, and adaptable parameter settings all help users build a more flexible and easier-to-manage system.

For projects that want a good balance between appearance, function, and budget, this product line is very easy to position and promote.

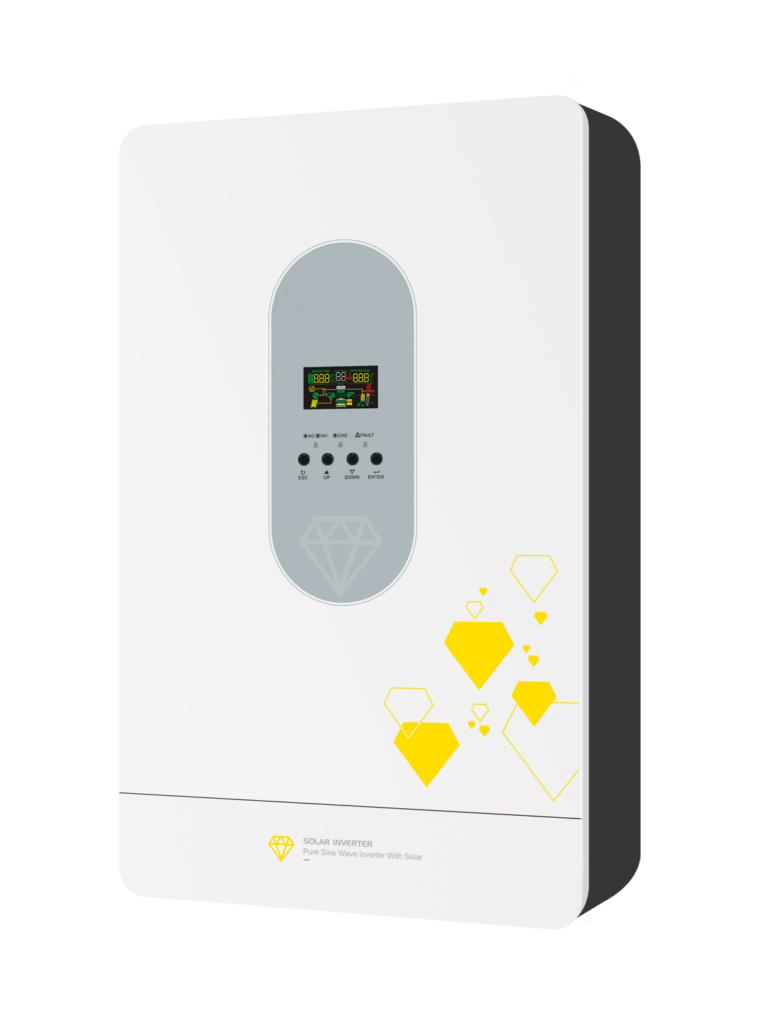

Compact Hybrid Solar Inverter Product Detail Image

Product Detail / Feature Overview

Product Overview

Product Name	Compact Hybrid Solar Inverter	Series	ED Series 1.6KW–11KW
Type	High Frequency Hybrid Solar Inverter	Installation	Wall Mounted
Power Range	1.6KW / 3KW / 4KW / 6.2KW / 11KW	Output Waveform	Pure Sine Wave
Battery Voltage	12Vdc / 24Vdc / 48Vdc	PV Charging Mode	MPPT / Dual MPPT
Special Features	Lithium Communication, Optional WiFi, Generator Dry Contact, Multiple Protection	Application	Home Backup, Outdoor Power, Small Projects, Hybrid Solar Systems
Maximum Efficiency	98%	Operating Temperature	-10°C to 50°C

Core Selling Points

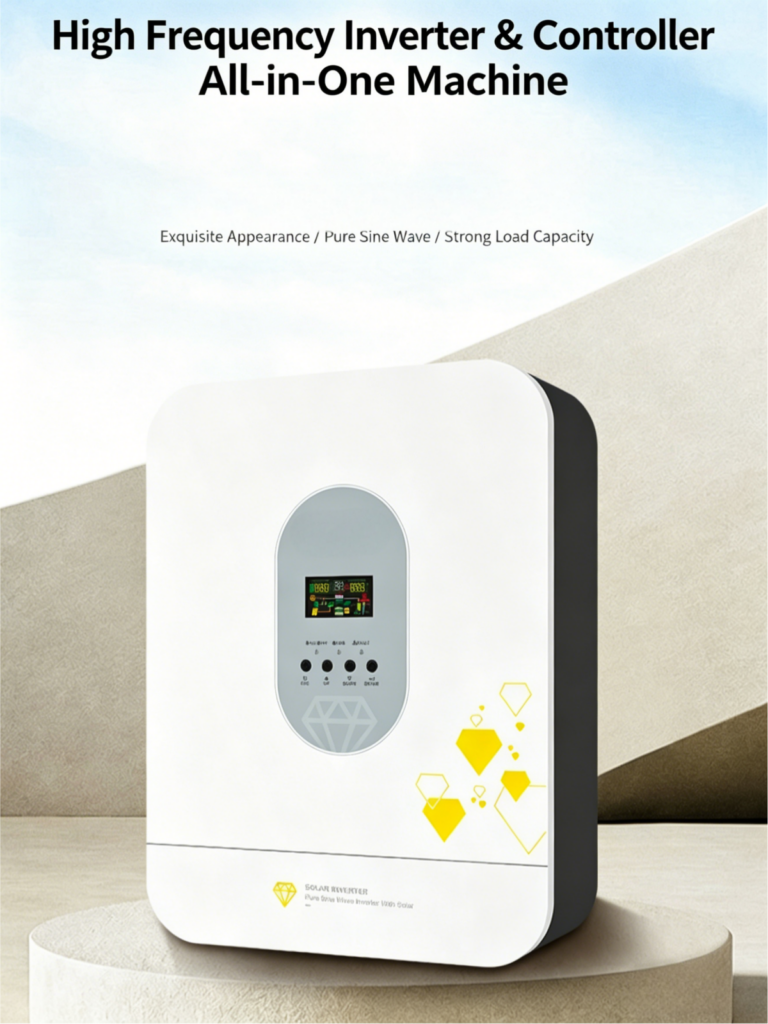

Compact Hybrid Solar Inverter Key Feature Image 1

Key Feature Image 1

Compact Hybrid Solar Inverter Key Feature Image 2

Key Feature Image 2

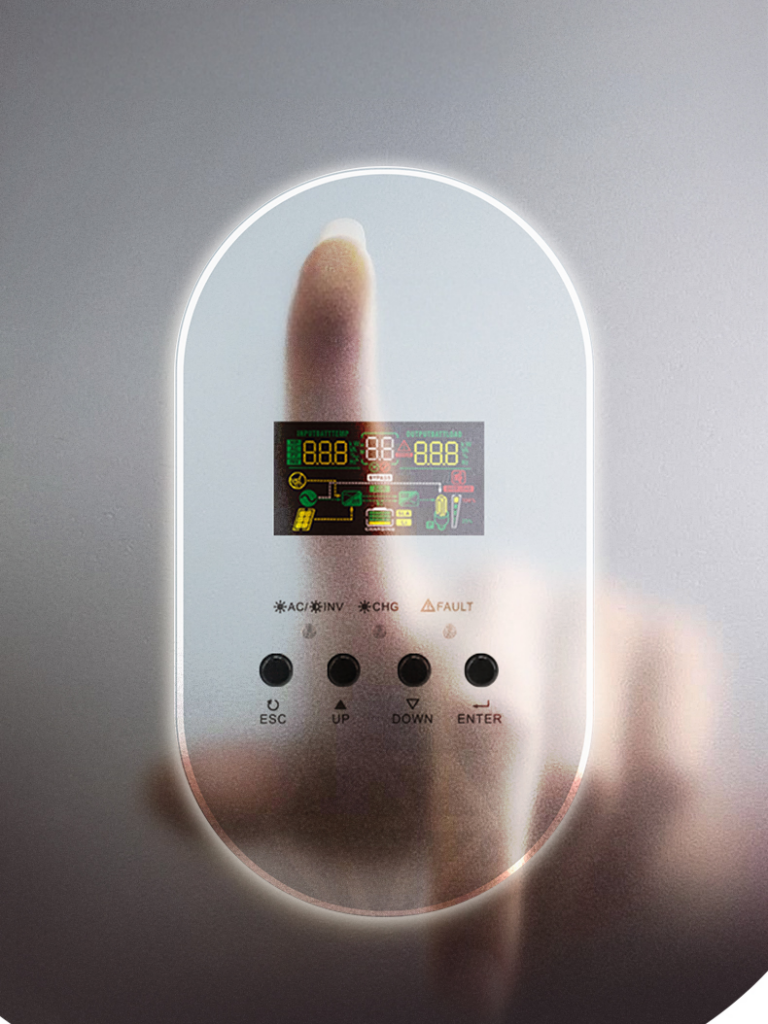

Compact Hybrid Solar Inverter Key Feature Image 3

Key Feature Image 3

Rounded compact design for a cleaner and more refined appearance
Adjustable parameters for different installation and usage scenarios
Supports lithium communication, optional WiFi, and generator dry contact
Short circuit protection helps improve operating safety
Pure sine wave output for wider appliance compatibility
Real-time display of operating status improves user visibility
Multiple protection logic supports more stable system operation
Cost-effective solution for practical hybrid solar projects

Technical Data

Model	2012EMH	3024EMH	4024EMH	6248EMH	11048EMH
Battery Inverter Power	1600W	3000W	4000W	6200W	11000W
PV Inverter Power	-	-	4500W	6500W	12000W
Rated Input Voltage	220/230/240VAC
Voltage Range	90-280VAC ±3V / 170-280VAC ±3V (UPS Mode)
Output Voltage	220/230/240VAC ±5%
Output Frequency	50/60Hz ±0.1%
Waveform	Pure Sine Wave
Peak Power	3200VA	6000VA	8000VA	12400VA	22000VA
Battery Voltage	12Vdc	24Vdc	24Vdc	48Vdc	48Vdc
PV Charging Mode	MPPT	MPPT	MPPT	MPPT	Dual MPPT
Max PV Input Power	2000W	3000W	5000W	6200W	2×5500W
Max PV Charging Current	100A	100A	120A	120A	150A
Max AC Charging Current	60A	60A	100A	100A	150A
Maximum Efficiency	98%
Communication	RS232 / Lithium BMS / WiFi Card / Dry Contact
Operating Temperature	-10°C to 50°C

Note: Technical data above is organized from the uploaded ED Series material. Please adjust the final displayed details according to the exact model you publish.

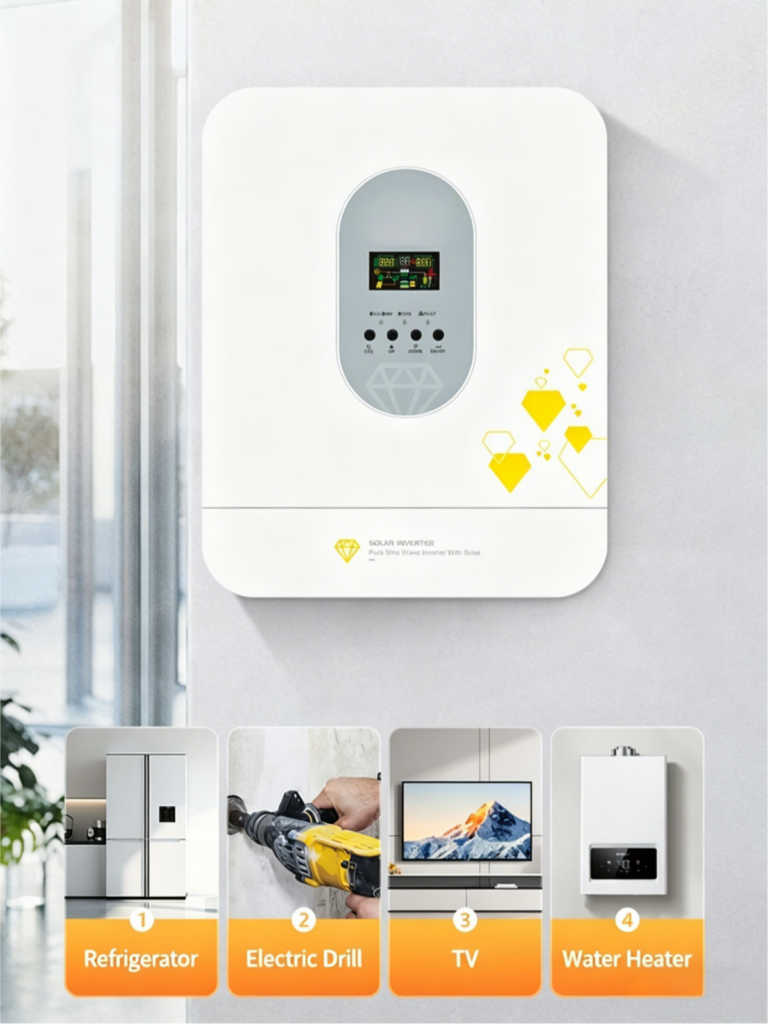

Application Scenario

This series is suitable for users who want a compact and practical hybrid solar solution across different project sizes. It can be used in home backup systems, small household solar storage, outdoor power applications, generator-supported systems, and other hybrid energy configurations where compact size and practical function are both important.

With pure sine wave output, practical communication options, optional WiFi, multiple protection logic, and flexible model selection from smaller to higher-power configurations, it offers a strong product fit for a wide range of real-world applications.

Residential backup and storage systems
Small hybrid solar projects
Outdoor and portable energy applications
Generator-supported power systems
Practical cost-sensitive solar power solutions

How to Select the Right Compact Inverter

Buyers should first confirm load size, battery voltage, PV configuration, generator coordination needs, and whether communication or monitoring functions are required. For many projects, compact appearance and easy integration can be just as valuable as power capacity.

The right inverter is usually the one that matches the user’s real daily load pattern and future expansion possibility, while keeping installation, management, and system cost under control.

Confirm total load and backup requirement
Check battery voltage and solar array size
Decide whether WiFi, BMS, or generator linkage is needed
Choose a model based on both current demand and future growth

FAQ

1. What is the main advantage of this compact hybrid inverter?

Its main advantage is combining a compact refined design with practical hybrid inverter functions for different project sizes.

2. Does it support lithium battery communication?

Yes. According to the uploaded material, it supports lithium battery communication and can work with optional WiFi and generator dry contact functions.

3. Is it suitable for home backup applications?

Yes. It is suitable for residential backup, small storage systems, and other practical hybrid solar applications.

4. What information is needed before model recommendation?

Please provide load size, battery voltage, solar panel design, and whether communication, monitoring, or generator support is required.

Need a Compact Inverter Solution?

Tell us your load size, battery configuration, PV design, and application scenario. We can help you choose the right compact hybrid solar inverter and matching system solution.
