Wide Voltage Solar Water Pump

Our Wide Voltage Solar Water Pump is designed for solar pumping projects that require more flexible voltage adaptation and more stable real-world operation. Compared with standard solar pumps, this type is better suited for working conditions where input voltage may fluctuate due to sunshine variation, system configuration differences, or changing environmental conditions.

In practical applications, solar pumping systems do not always operate under ideal midday sunlight. Early morning, late afternoon, cloudy weather, and seasonal changes can all influence solar input. A wide voltage solar pump is developed to handle these conditions more effectively, helping the system maintain better operating continuity and improving the overall usability of solar water supply in field projects.

This makes it a strong choice for rural water supply, livestock watering, agricultural irrigation, garden use, and remote area projects where users expect dependable pumping performance but cannot always guarantee perfectly stable input conditions. It is especially valuable in projects where flexibility, easy matching, and stable daily water delivery are more important than theoretical laboratory performance.

Wide voltage input range for more flexible system matching
Better adaptation to changing solar conditions throughout the day
Suitable for off-grid water supply and irrigation projects
More stable operation in practical field environments
Ideal for users who need reliable pumping under variable input conditions

Why Wide Voltage Matters

In many solar pumping systems, the real challenge is not only selecting the right head and flow, but also ensuring that the pump can work reliably when solar input changes during real operation. Traditional systems may be more sensitive to voltage variation, which can reduce practical efficiency in the field.

A wide voltage solar water pump helps solve this problem by allowing a broader input range. This gives the system greater tolerance and makes pump selection more flexible when working with different panel configurations or fluctuating sunshine conditions.

For many end users, this means easier installation, more practical matching, and more confidence that the pump can keep delivering water under everyday outdoor use.

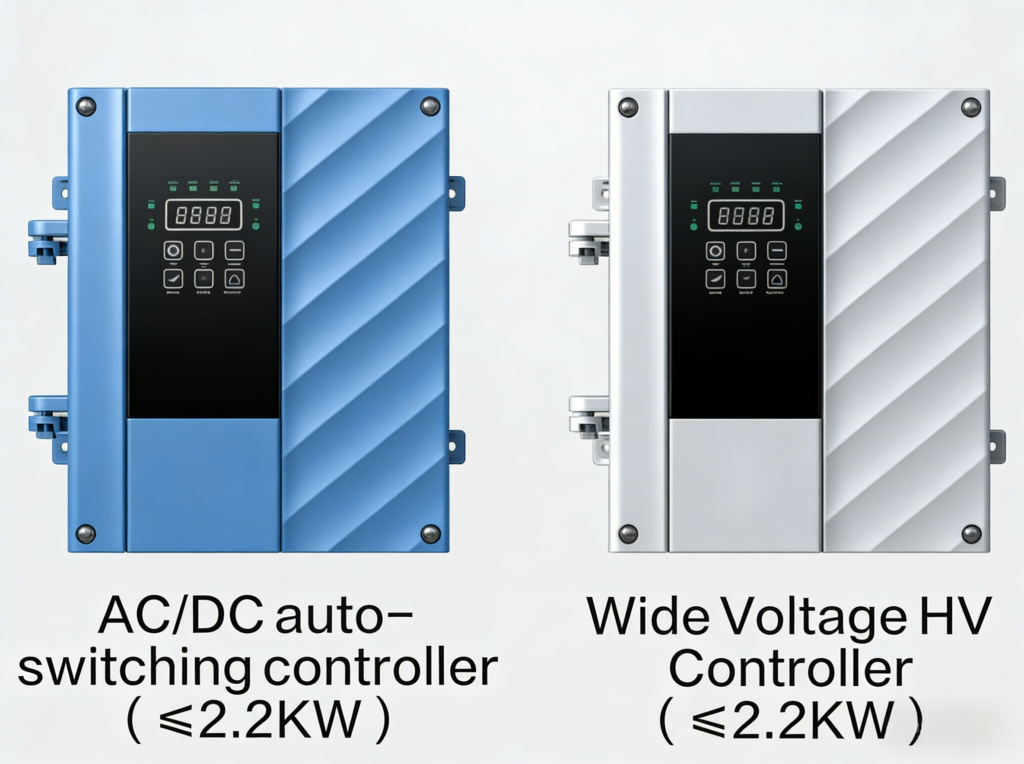

Wide Voltage Solar Water Pump Structure Image

Product Structure / Parts Detail

Product Overview

Product Name	Wide Voltage Solar Water Pump	Series	3DPC-A/D or 4DLR A/D
Type	Wide Voltage DC Solar Pump	Voltage Characteristic	Broader Input Voltage Adaptation
Power Supply	Solar Panel + Controller	Installation	Submersible / Solar Pump System
Main Advantage	More flexible operation under changing solar input	Application	Rural Water Supply, Irrigation, Livestock Watering, Remote Projects
System Matching	More flexible for variable solar configurations	Warranty	2 Years
Certificates	CE, GS, RoHS	Packing	Export Standard Packing

Key Features

Wide voltage input for better adaptability in real solar conditions
Improved flexibility for system design and panel matching
More practical for projects with changing sunlight intensity
Stable daily pumping performance in outdoor field use
Suitable for remote and off-grid water supply projects
Reduces the difficulty of matching system voltage conditions
Reliable clean water lifting for household and agricultural use
Energy-saving solar pumping solution with lower operating cost

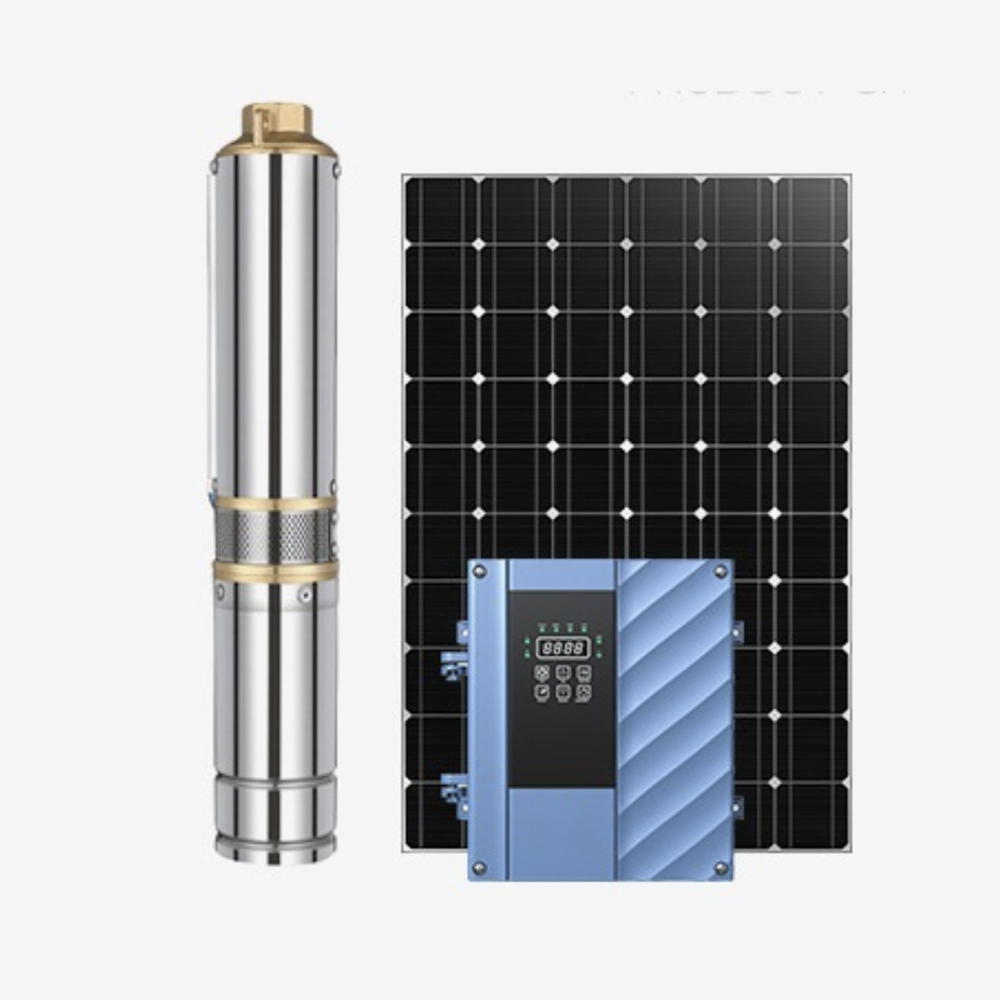

Wide Voltage Solar Water Pump Application or Detail Image

Product Detail or Application View

Technical Data

Model	Voltage	Wide Input Range	Power	Max. Flow	Max. Head	Outlet	Cable	VOC	Recommended Panel Power
3DPC-A/D 1.5-35-24-210	24V	30V–48V	210W	1.5 m³/h	35m	1"	2m	<60V	≥1.3 × Pump Power
3DPC-A/D 2-50-48-400	48V	60V–90V	400W	2 m³/h	50m	1"	2m	<110V	≥1.3 × Pump Power
4DLR A/D 3-70-72-750	72V	90V–120V	750W	3 m³/h	70m	1.25"	2m	<170V	≥1.3 × Pump Power

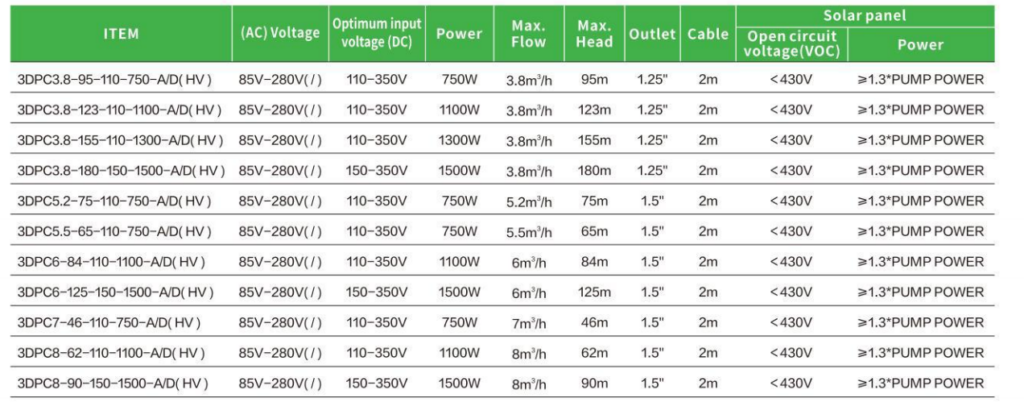

Wide Voltage Solar Water Pump Technical Data Image

Technical Data Image

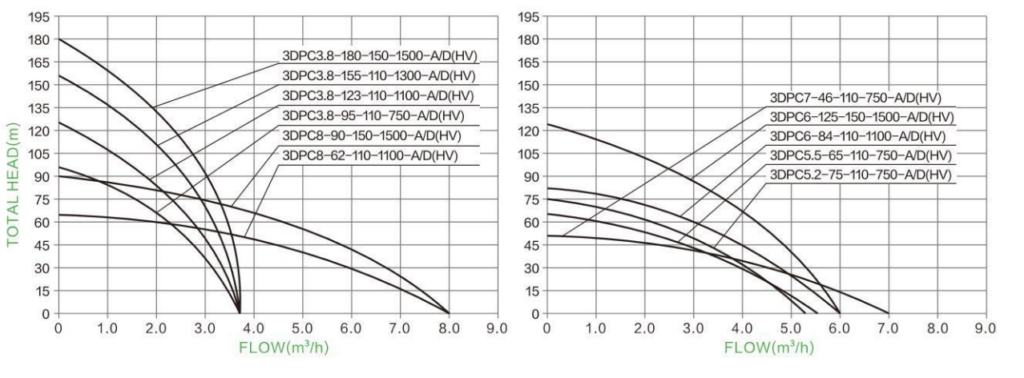

Wide Voltage Solar Water Pump Hydraulic Performance Curve

Hydraulic Performance Curve

Note: Final model selection should be based on required flow, head, working voltage range, and real project conditions.

Typical Applications

Wide Voltage Solar Water Pump Application Image 1

Application Scene 1

Wide Voltage Solar Water Pump Application Image 2

Application Scene 2

Where This Pump Performs Best

Wide voltage solar water pumps are especially useful in projects where sunlight conditions are not always ideal and the user wants more practical operating flexibility.

They are commonly used in rural homes, fields, orchards, livestock watering points, and remote installations where power conditions may vary throughout the day. Because they are easier to match with different solar input conditions, they are often preferred in real-world environments where stability and adaptability are more important than narrow design limits.

Rural household water supply
Farm and orchard irrigation
Livestock watering systems
Remote off-grid water delivery projects
Solar systems with varying sunlight and input conditions

Packing & Accessories

The pump and controller can be packed securely for export shipment. Installation accessories and standard components are available to simplify system setup, transport, and project use.

For distributors and project buyers, flexible packing and accessory support can improve delivery efficiency and make installation more convenient on site.

Export standard protective packing
Controller packed separately for safety
Installation kits available
Suitable for distributor and project orders
Convenient for transport and deployment

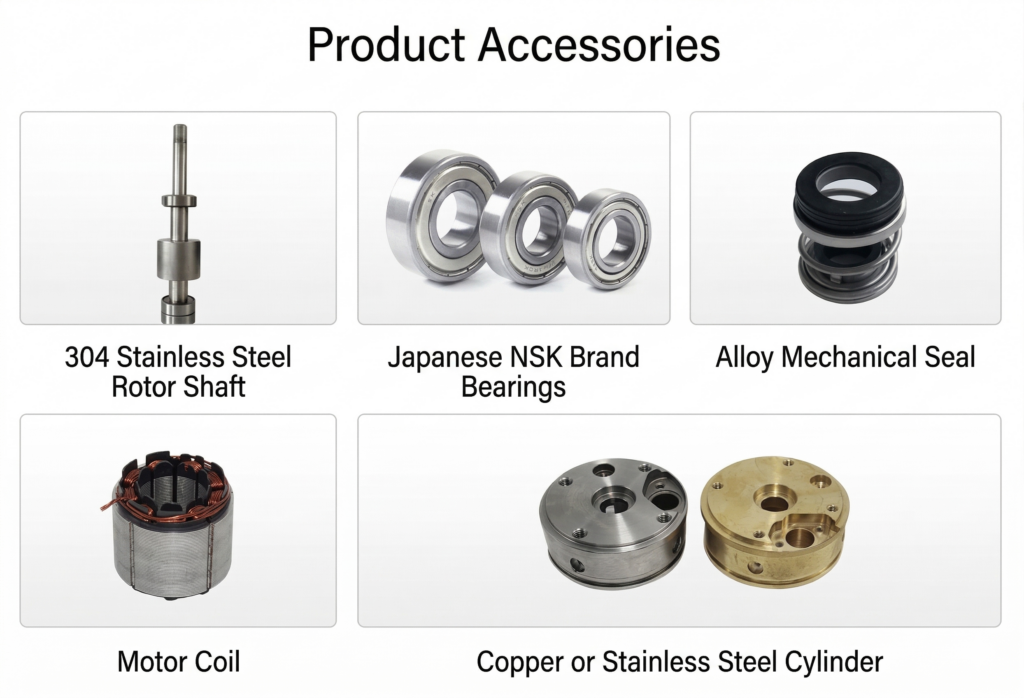

Wide Voltage Solar Water Pump Packing Image

Packing & Accessories

How to Select the Right Model

When selecting a wide voltage solar water pump, customers should not focus only on nominal voltage. Real selection should also consider required flow, lifting head, water source depth, expected daily running condition, and the practical solar input profile during the day.

In projects where sunlight varies significantly or solar configuration flexibility is needed, a wide voltage design can make the whole system easier to match and more stable in daily operation. This is why it is often preferred for rural and agricultural solar pumping applications.

Confirm required flow and lifting head
Check actual water level and delivery distance
Consider real sunlight conditions during the day
Match panel voltage and controller range properly

FAQ

1. What is the main advantage of a wide voltage solar water pump?

Its main advantage is better adaptability to changing input voltage and more flexible matching in practical solar pumping systems.

2. Where is it commonly used?

It is commonly used in rural water supply, irrigation, livestock watering, and remote off-grid solar water pumping projects.

3. Is it suitable for changing sunlight conditions?

Yes. That is exactly one of its key strengths. It is designed to work more practically under varying solar input conditions.

4. What information is needed before model recommendation?

Please provide required flow, head, water level, application, and your solar system conditions so we can recommend the proper model.

Need a Flexible Solar Pump Solution?

Tell us your required flow, head, water source depth, and project conditions. We can help you choose the right wide voltage solar water pump and matching solar configuration.
