Smart POS Checkout One-Step Solution
Our Solar Water Supply Pump is designed for reliable daily water delivery in off-grid and remote environments. Powered by solar energy, it provides a practical solution for household water supply, rural living needs, livestock watering, tank filling, and small community water delivery systems.
Compared with conventional pumping methods that depend on unstable electricity or fuel cost, a solar water supply pump helps users build a more independent and economical water system. It is especially suitable for projects where stable water access is essential for daily life, but grid conditions are limited or operating cost must be controlled.
This type of pump is widely used in homes, farms, rural settlements, storage tank supply systems, and remote water delivery projects. For many buyers, it is not only a pump, but the core component of a dependable solar water supply system that supports daily use with lower long-term energy cost.
Why a Solar Water Supply System Is PracticalIn many rural and off-grid locations, stable water access is more important than almost any other daily infrastructure need. When electricity is limited, diesel is expensive, or power distribution is inconvenient, a solar-powered water supply system becomes a highly practical alternative. A solar water supply pump can lift water from wells or boreholes and deliver it to tanks, household use points, animal drinking systems, or other daily supply locations. During sunny daytime operation, it helps reduce running cost and allows users to build a cleaner and more independent water solution. For households, farms, small rural communities, and remote living environments, this kind of pump is often chosen because it combines practical daily use with lower long-term operating expense. |

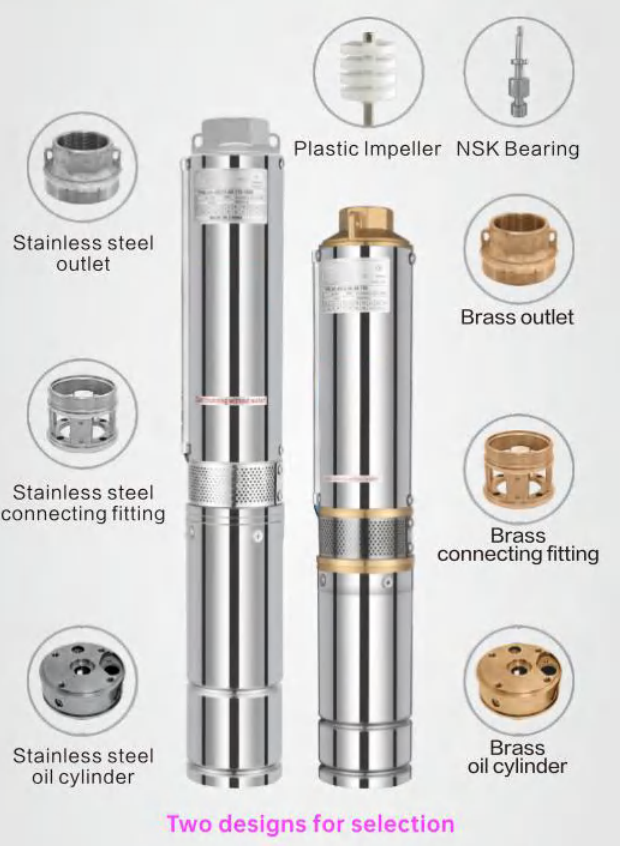

Product Structure / Parts Detail
|
| Product Name | Solar Water Supply Pump | Series | 4DPC |
| Type | Solar Pump for Water Supply | Pump Diameter | 4 Inch |
| Installation | Submersible | Power Supply | Solar Panel + Controller |
| Main Application | Household Water Supply, Tank Filling, Rural Water Delivery, Livestock Watering | System Benefit | Stable daily water supply with lower operating cost |
| Water Source | Well / Borehole / Underground Water Source | Warranty | 2 Years |
| Certificates | CE, GS, RoHS | Packing | Export Standard Packing |
Key Features
|

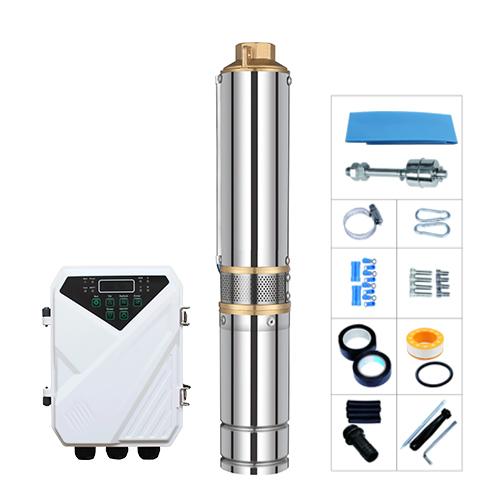

Product Detail or Application View
|
| Model | Voltage | Optimum Input Voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | VOC | Recommended Panel Power |
|---|---|---|---|---|---|---|---|---|---|
| 4DPC2-50-48-400 | 48V | 60V–90V | 400W | 2 m³/h | 50m | 1.25" | 2m | <110V | ≥1.3 × Pump Power |
| 4DPC3-70-48-600 | 48V | 60V–90V | 600W | 3 m³/h | 70m | 1.25" | 2m | <110V | ≥1.3 × Pump Power |
| 4DPC4-95-72-900 | 72V | 90V–120V | 900W | 4 m³/h | 95m | 1.25" | 2m | <170V | ≥1.3 × Pump Power |
Note: Final model selection should be based on required flow, lifting head, daily water demand, and water source depth.
|
Application Scene 1
Application Scene 2
|
Where It Performs BestSolar water supply pumps are best suited for projects where water must be delivered consistently for daily living, animal care, storage tank filling, and remote domestic use. This includes isolated homes, farms, small villages, and other locations where reliable water access is essential. They are often selected by users who want a cleaner and lower-cost alternative to diesel or unstable grid pumping, especially in areas where sunlight is available but conventional infrastructure is weak.
|

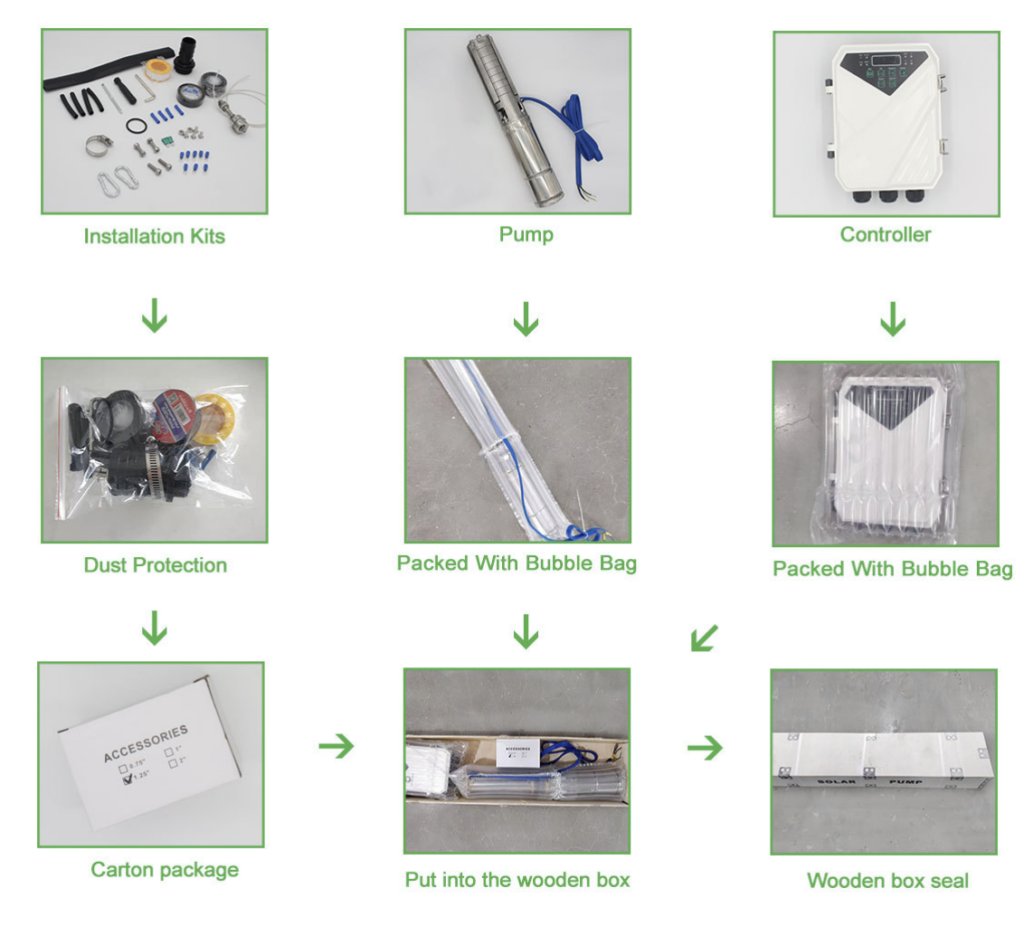

Packing & AccessoriesThe pump and controller can be packed securely for export shipment. Standard accessories and installation kits are available to support convenient transport, setup, and maintenance in real project environments. For water supply systems, especially in remote locations, dependable packing and complete accessory support help improve installation efficiency and reduce on-site preparation difficulty.
|
Packing & Accessories
|
For water supply projects, pump selection should start from actual daily use needs. Buyers should confirm how much water is required per day, how high the water needs to be lifted, how far it will be delivered, and whether the system will mainly serve homes, tanks, livestock, or a combination of uses.
In many cases, stable and practical delivery is more important than simply choosing the highest power model. A properly matched solar water supply pump system will usually perform better, run more efficiently, and provide more reliable daily service over the long term.
1. What is the main use of a solar water supply pump?
2. Is it suitable for remote areas?
3. What information is needed before model recommendation?
4. Can it be used for both household and livestock water supply?
Tell us your daily water demand, head, water source depth, and application. We can help you choose the right solar water supply pump and suitable solar configuration.
