Our Off Grid Solar Inverter is designed for users who need a more independent, flexible, and reliable power solution in locations where grid power is unstable, unavailable, or not the preferred main energy source. It is suitable for residential backup systems, remote homes, small business energy systems, and solar applications that require practical off-grid operation.
This TC Series inverter supports off-grid and grid-related operating logic, giving users more flexibility under different power conditions. It combines inverter, solar charging, battery management, and intelligent control functions in one system, making it easier to build a complete solar storage solution for daily use.
With features such as IP54 protection, battery-free operation support, dual PV input, parallel capability, and WiFi monitoring compatibility, this series is especially suitable for users who want more than just basic power conversion. It is built for real operating environments where reliability, flexibility, and easier system management matter.
Why This Off Grid Inverter Is DifferentIn many practical solar projects, users need more than a simple inverter. They need a system that can support unstable utility conditions, manage solar input intelligently, adapt to different battery configurations, and remain reliable in outdoor or semi-outdoor environments. This TC Series off grid solar inverter is designed with that practical demand in mind. It supports flexible power operation, stronger environmental adaptability, and convenient feature expansion for modern residential and small commercial energy systems. For buyers who care about backup reliability, outdoor adaptability, and more flexible solar system design, this type of inverter offers stronger real-world value than a basic entry-level unit. |

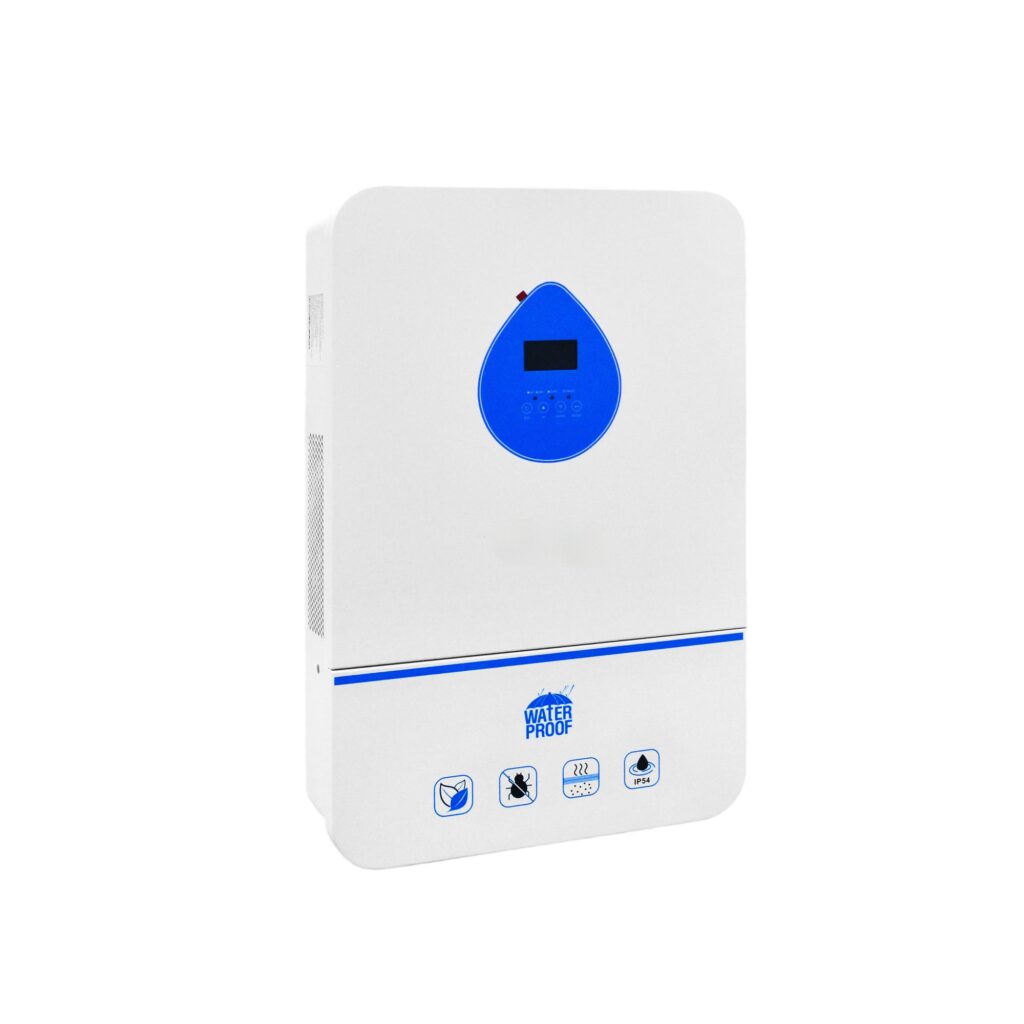

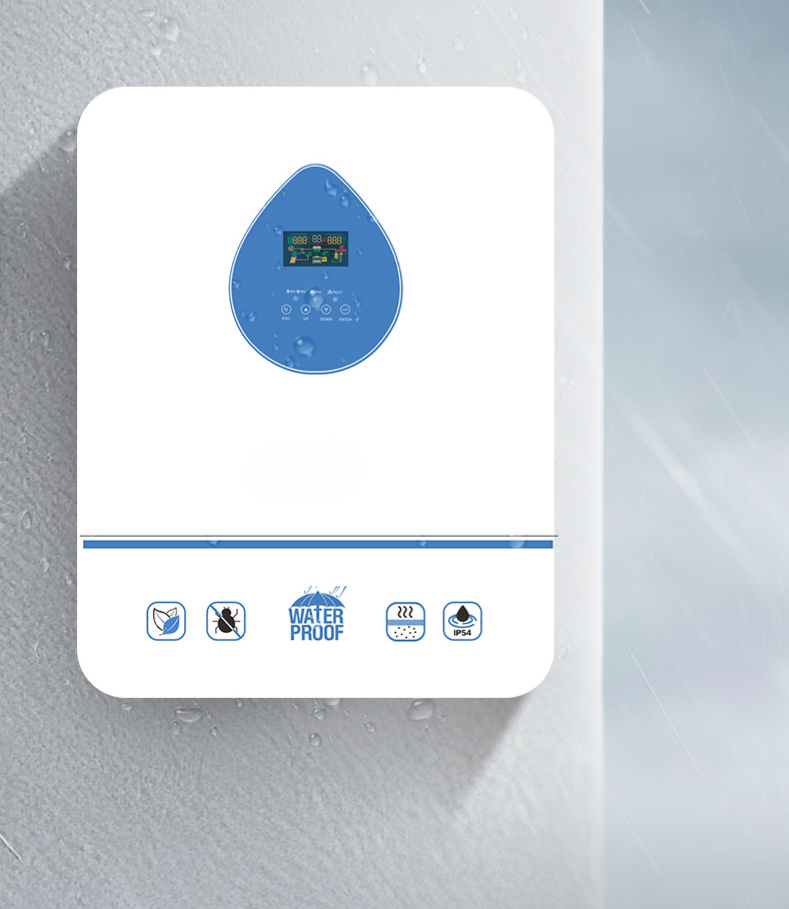

 Product Detail / Main Visual |
| Product Name | Off Grid Solar Inverter | Series | TC Series 4KW–11KW |
| Type | Off Grid / Hybrid-Style Solar Inverter | Installation | Wall Mounted |
| Rated Power Range | 4KW / 6.2KW / 11KW | Output Waveform | Pure Sine Wave |
| Battery Voltage | 24Vdc / 48Vdc | PV Charging Mode | MPPT / Dual MPPT |
| Protection Level | IP54 | Typical Application | Backup Power, Off Grid Systems, Solar Storage, Home Energy Use |
| Special Features | Battery-Free Work, Parallel Support, WiFi Monitoring | Packing | Export Standard Packing |

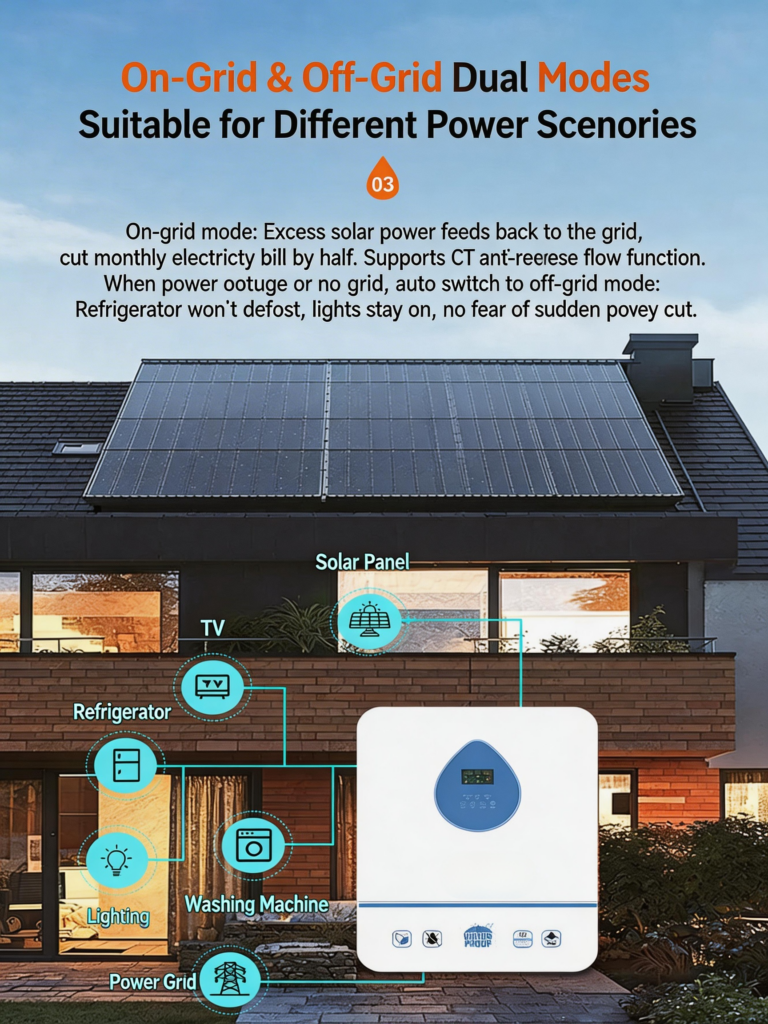

 Key Feature |
 Key Feature Image 2 |
|
|
| Model | TC4024SMH | TC6248SMH | TC11048MH |
|---|---|---|---|
| Battery Inverter Power | 4000W | 6200W | 11000W |
| PV Inverter Power | 4500W | 6500W | 15000W |
| Output Voltage | 220/230/240VAC ±5% | 220/230/240VAC ±5% | 220/230/240VAC ±5% |
| Output Frequency | 50/60Hz ±0.1% | 50/60Hz ±0.1% | 50/60Hz ±0.1% |
| Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Peak Power | 8000VA | 12400VA | 22000VA |
| Battery Voltage | 24VDC | 48VDC | 48VDC |
| PV Charging Mode | MPPT | MPPT | Dual MPPT |
| Max PV Input Power | 6500W | 8500W | 2×7500W |
| Max PV Charging Current | 120A | 120A | 150A |
| Maximum Efficiency | 98% | 98% | 98% |
| Protection Level | IP54 | IP54 | IP54 |
Note: Technical data above is organized from the uploaded TC Series material. Please adjust the final displayed values according to the exact model you publish.

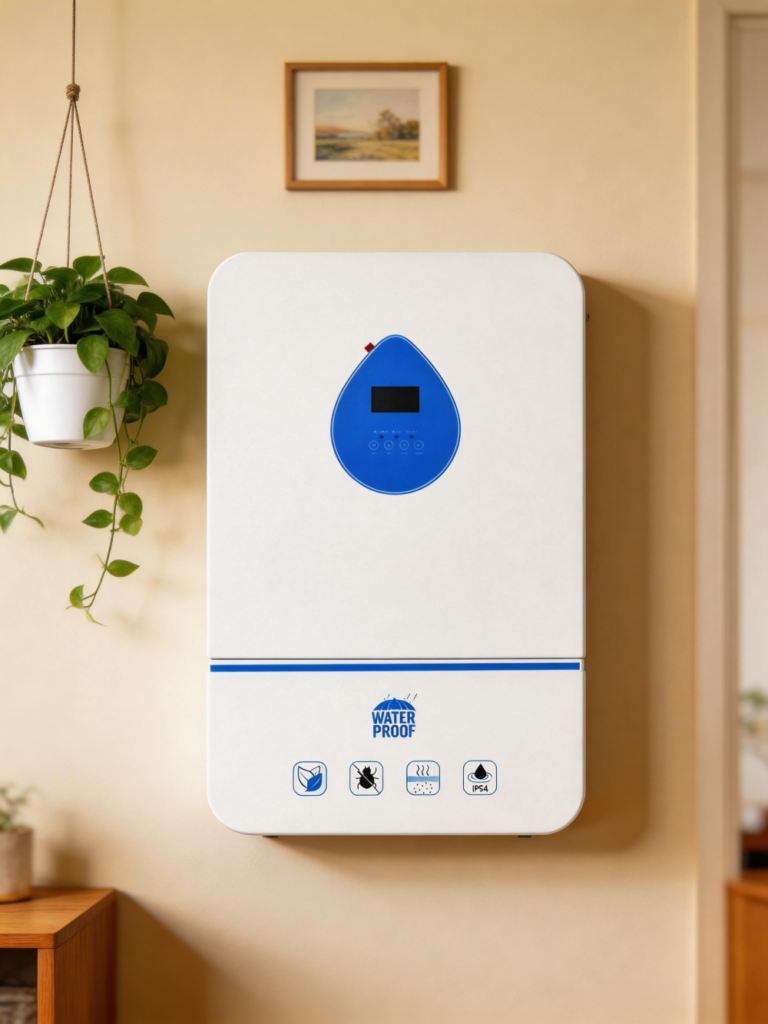

 Application Scene 1 |
 Application Scene 2 |
|
This inverter is suitable for solar storage systems that need stronger environmental adaptability and more flexible system operation. It can be used in residential backup applications, home solar storage systems, rural energy projects, and small commercial environments where power continuity and practical system control are important. With IP54 protection and parallel capability, it is especially useful for projects that require outdoor or semi-outdoor installation conditions, larger load support, or future system expansion flexibility.
|
|
Off grid inverter selection should be based on real application demand rather than only rated power. Buyers should confirm total load size, battery voltage, PV configuration, installation environment, and whether backup, parallel expansion, or battery-free working mode is needed.
In many practical projects, the right inverter is the one that matches the daily operating logic of the system, supports future expansion, and remains reliable under real field conditions. This is especially important for users who need both performance and long-term system stability.
1. What is the main advantage of this off grid solar inverter?
2. Is it suitable for outdoor or harsh environments?
3. Can it work without a battery?
4. What information is needed before model recommendation?
Tell us your load demand, battery voltage, PV configuration, and installation environment. We can help you choose the right off grid solar inverter and system solution.
