Deep Well DC Solar Pump

Our Deep Well DC Solar Pump is specially designed for projects that require reliable water lifting from deeper wells and boreholes. Compared with standard shallow-water solar pumps, this type is more suitable for applications where water level is lower, lifting distance is greater, and stable head performance is essential for daily use.

Powered by solar energy through a dedicated DC controller, the pump helps users build an efficient off-grid water supply system without depending on unstable grid electricity. It is widely used in rural water supply, farm irrigation, livestock watering, household use, and remote area water delivery where dependable long-term pumping is required.

This series is especially valued for its ability to deliver water from greater depth while maintaining practical daily flow. For customers working on agricultural, domestic, or small commercial water systems, a deep well DC solar pump offers a more suitable solution when well depth and lifting head are the key factors in system design.

Designed for deep well and borehole water lifting
Suitable for projects with higher head requirements
Reliable DC solar pumping solution for off-grid use
Stable performance for rural, farm, and household water supply
Ideal for solar-powered systems where water source is deeper below ground

Product Overview

Product Name	Deep Well DC Solar Pump	Series	4DPC
Type	Deep Well DC Solar Water Pump	Pump Diameter	4 Inch
Installation	Submersible	Power Supply	Solar Panel + DC Controller
Typical Feature	Suitable for deeper water levels and higher lifting head	Application	Rural Water Supply, Irrigation, Livestock Watering, Household Use
Pump Structure	DC Solar Submersible Pump	Warranty	2 Years
Certificates	CE, GS, RoHS	Packing	Export Standard Packing

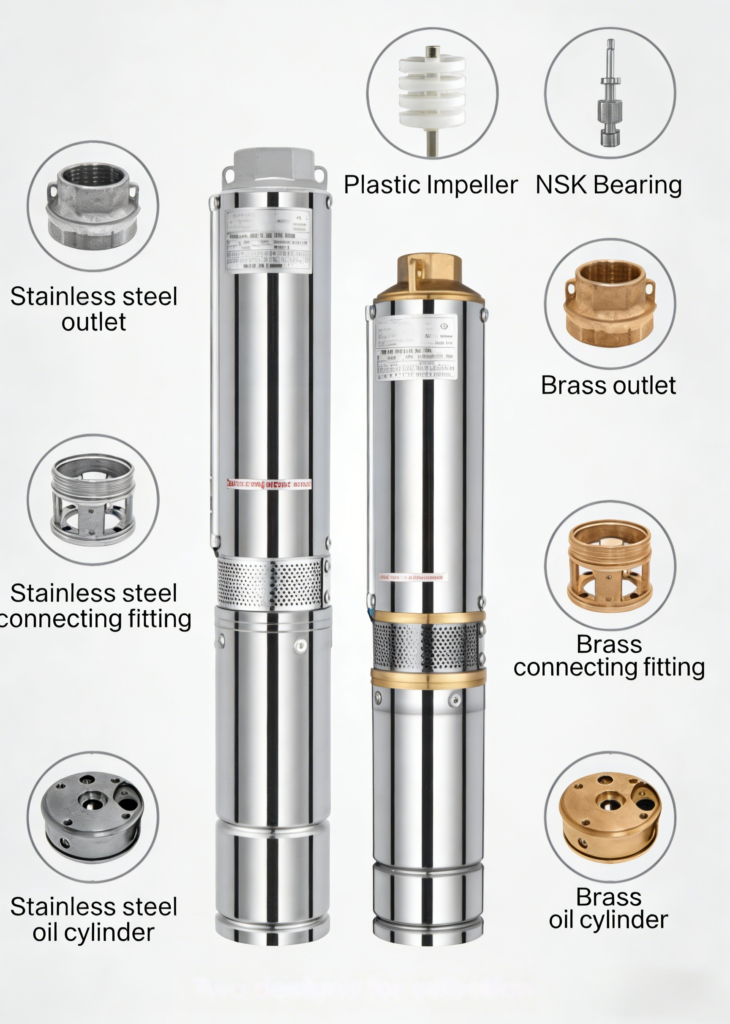

Product Structure / Parts Detail

Key Features

Designed specifically for deep well and borehole applications
Better suited for higher lifting head than ordinary shallow water pumps
Stable water delivery for remote daily-use systems
Works with solar panels through a dedicated DC controller
Reliable off-grid solution for farms, homes, and rural projects
Low operating cost compared with conventional electric pumping systems
Suitable for continuous solar-powered clean water supply
Easy system integration for custom solar pumping setups

Why Choose a Deep Well DC Solar Pump

In many solar water pumping projects, the main challenge is not simply moving water, but lifting water efficiently from deeper underground sources. When water level is low or the vertical delivery distance is large, selecting a normal solar pump may lead to unstable performance or insufficient water output.

A deep well DC solar pump is developed for exactly this kind of application. It is more suitable for installations where the well is deeper, the lifting head is higher, and the pump must work reliably under daily field conditions. For users in remote villages, agricultural land, ranches, and isolated homes, this type of pump makes solar water supply more practical and dependable.

If your project requires a balance between stable head performance, practical water output, and solar-powered independence, a deep well DC solar pump is one of the most suitable choices.

Technical Data

Model	Voltage	Optimum Input Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Open Circuit Voltage (VOC)	Recommended Solar Panel Power
4DPC2-50-48-400	48V	60V–90V	400W	2 m³/h	50m	1.25"	2m	<110V	≥1.3 × Pump Power
4DPC3-70-48-600	48V	60V–90V	600W	3 m³/h	70m	1.25"	2m	<110V	≥1.3 × Pump Power
4DPC4-95-72-900	72V	90V–120V	900W	4 m³/h	95m	1.25"	2m	<170V	≥1.3 × Pump Power

Note: Final model selection should be based on well depth, water level, required head, flow demand, and local sunshine conditions.

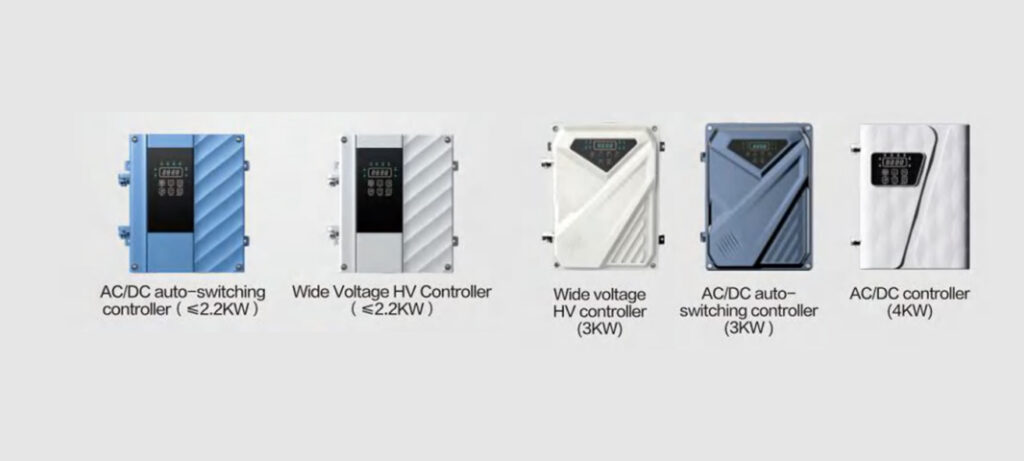

Technical Data Image

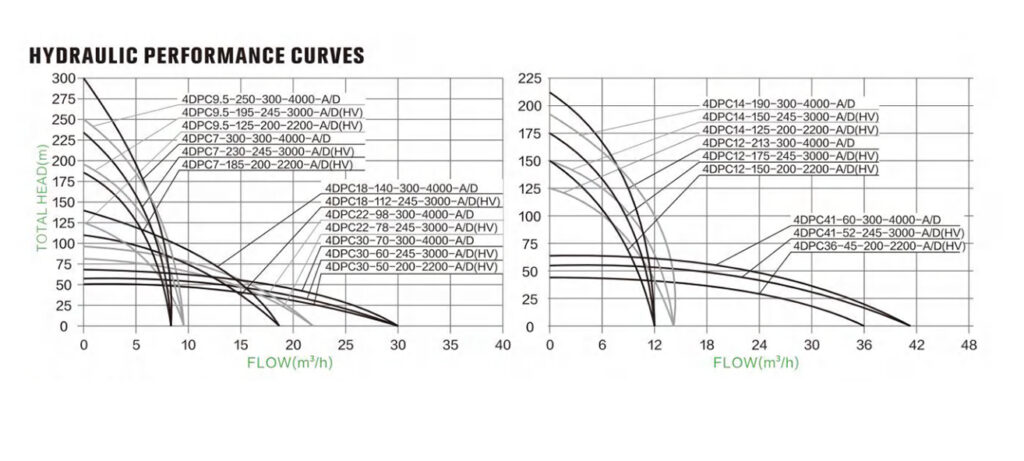

Deep Well DC Solar Pump Performance Curve

Hydraulic Performance Curve

Applications

Rural Water Supply

Well suited for villages, remote homes, and residential water systems that depend on deeper well water sources.

Agricultural Irrigation

Provides practical solar-powered water lifting for fields, orchards, gardens, and small irrigation projects with higher head requirements.

Livestock & Farm Use

An effective water supply solution for ranches, farms, and livestock watering points located far from stable grid power.

Packing & Accessories

The pump and controller can be packed securely for export shipment. Standard accessories and installation components are available to support transport, installation, and project deployment.

Export standard protective packing
Pump packed for safe transportation
Controller packed separately for safety
Installation kits available
Suitable for engineering and distributor orders

Deep Well DC Solar Pump Packing Image

Packing & Installation Kits

System Connection

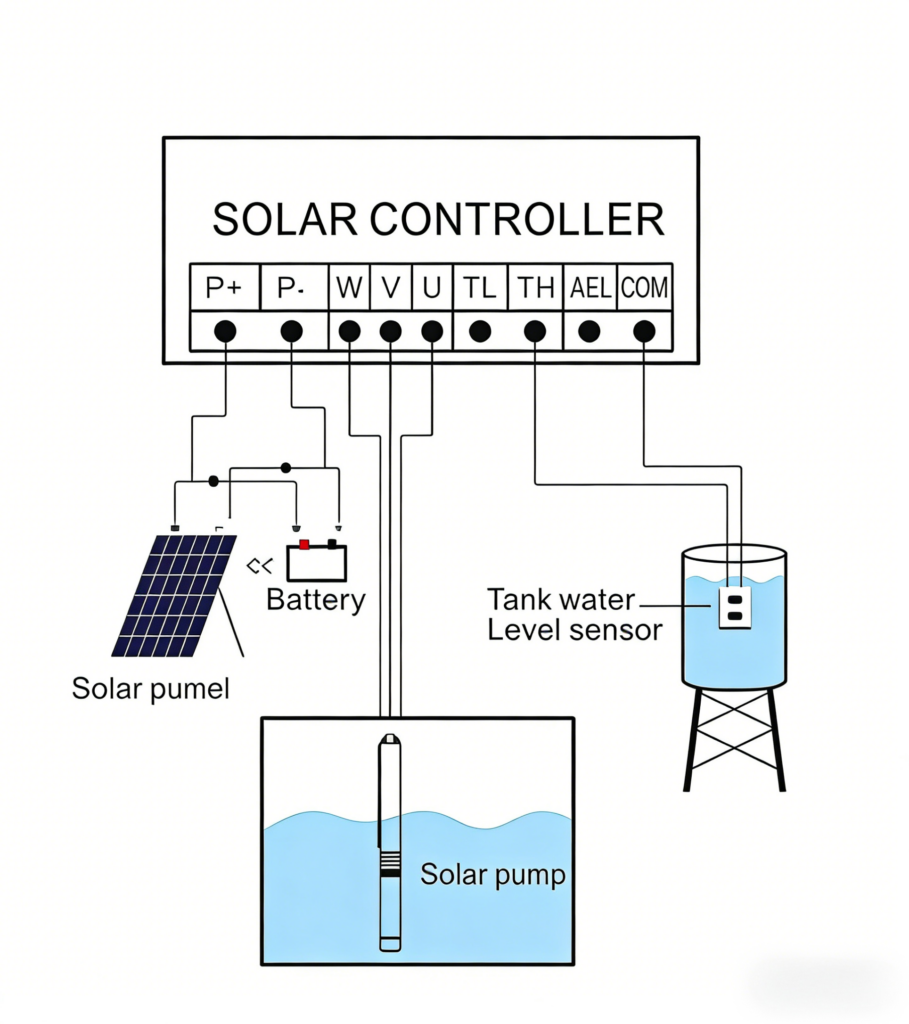

Deep Well DC Solar Pump Wiring Diagram

Solar Controller Wiring Diagram

How the System Works

The deep well DC solar pump works together with solar panels and a DC controller. The controller manages input power, helps protect the motor, and supports stable pumping performance under different sunlight conditions.

Solar panel provides the power source
Controller regulates and protects the pump system
Pump lifts water from deep well or borehole
Water level control can be added if required
System can be configured for different project conditions

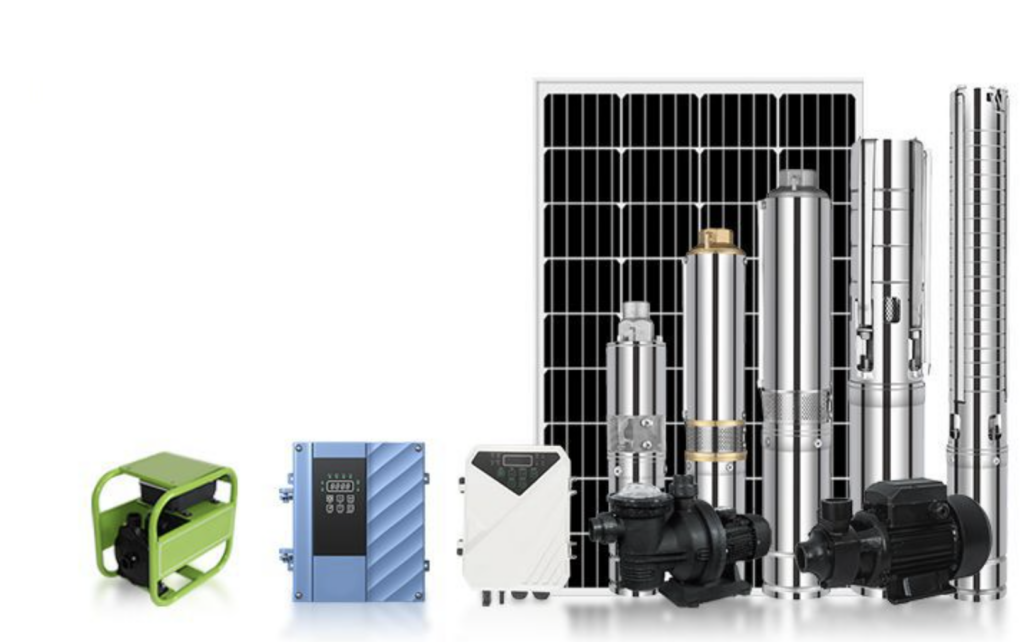

How to choose Pump

How to choose pump

How to Select the Right Model

Deep well solar pump selection should always start with real project conditions. Customers need to confirm static water level, dynamic water level, total lifting height, expected daily water volume, and pipe length before choosing a model.

If the well is deeper and the required lifting distance is larger, the system should be matched carefully to ensure the pump, controller, and solar panel power work together efficiently. Proper model selection not only improves water output, but also helps extend pump life and overall system stability.

Confirm actual water level depth before selection
Measure required lifting head accurately
Check daily water demand and delivery distance
Match solar panel voltage and power carefully

FAQ

1. What makes a deep well DC solar pump different from a normal solar pump?

It is more suitable for deeper water levels and higher lifting head applications where stable vertical water delivery is more important.

2. What applications is it suitable for?

It is suitable for rural water supply, farm irrigation, livestock watering, and remote off-grid water pumping projects.

3. Can it be used where grid power is unstable or unavailable?

Yes. It is designed for solar-powered off-grid use and works with solar panels through a DC controller.

4. What information is needed before model recommendation?

Please provide well depth, water level, required flow, head, daily water demand, and local solar conditions so we can recommend the proper model.

Need a Deep Well Solar Pump Solution?

Tell us your well depth, required flow, lifting head, and application. We can help you choose the right deep well DC solar pump model and matching solar power configuration.
