DC Solar Submersible Water Pump

The Suntrica 2DPC DC solar submersible water pump series is a compact 2-inch clean-water range for narrow wells, household supply, garden irrigation and small farm applications. The models listed on this page use 24V or 48V DC motors with rated power from 200W to 400W.

The listed models cover maximum flow values from 1.5 to 1.7 m3/h and maximum head values from 35 to 64 m. Maximum flow and maximum head are separate pump-curve endpoints, so the final model must be selected at the required operating flow and total dynamic head. A compatible DC controller is required; batteries are not required for properly configured daylight pumping.

2-inch DC brushless solar submersible pump
Stainless steel body with brass outlet fitting
Plastic impeller for smooth clean water pumping
Suitable for household water supply and irrigation use
Compatible with solar panel and DC controller systems

Product Overview

Product Name	DC Solar Submersible Water Pump	Series	2DPC
Type	2 Inch DC Brushless Solar Pump with Plastic Impeller	Pump Diameter	2 Inch
Pump Body Material	Stainless Steel	Outlet Material	Brass
Impeller Material	Plastic	Power Supply	Solar Panel + DC Controller
Application	Drinking Water Supply, Garden Irrigation	Warranty	2 Years
Certificates	CE, GS, RoHS	Packing	Wooden Case

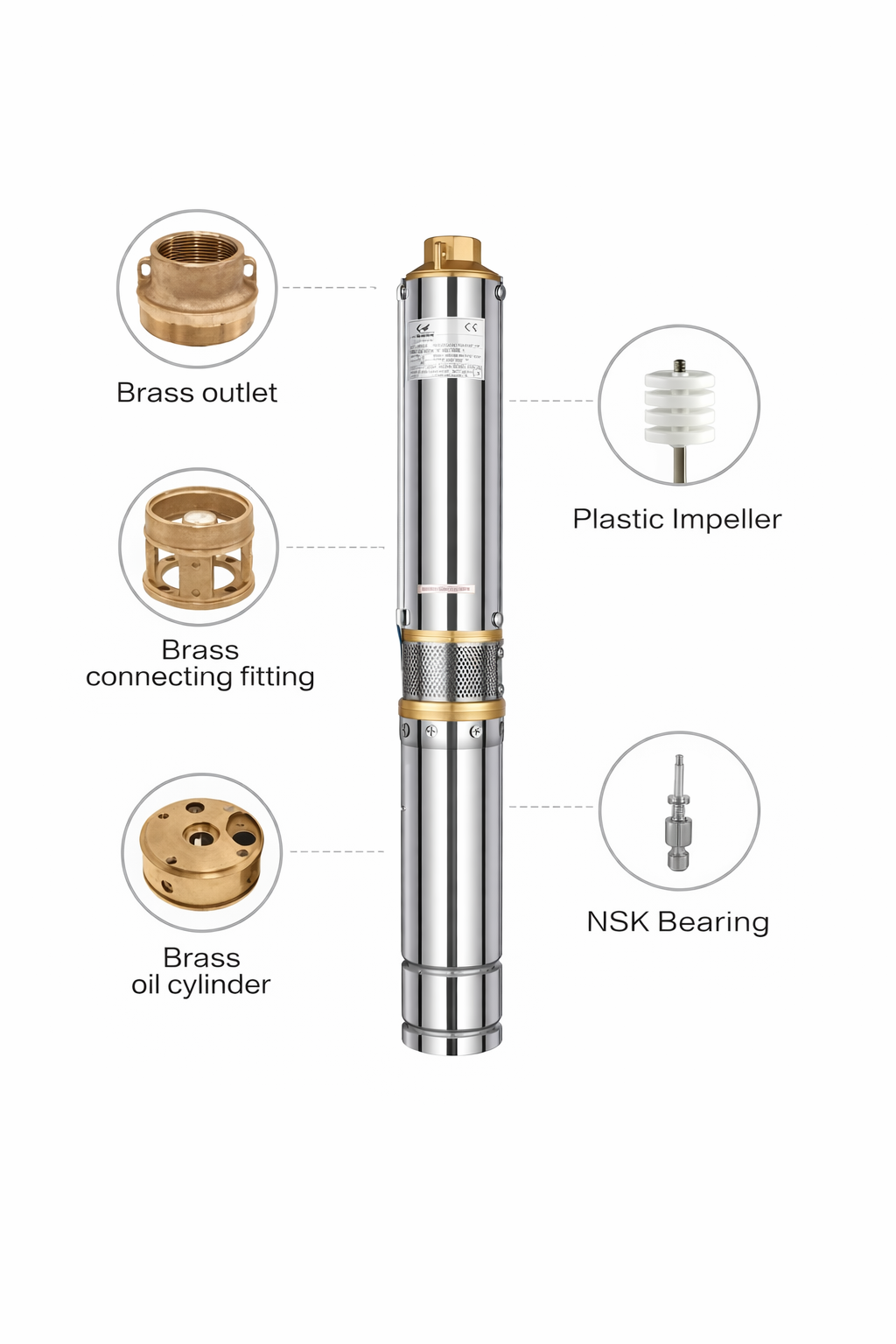

Product Structure / Parts Detail

Key Features

Brushless DC motor for stable and energy-saving performance
Compact 2-inch design suitable for narrow wells
Stainless steel body for corrosion resistance and longer service life
Brass outlet and fittings for durable connection
Plastic impeller designed for clean water applications
Works with solar panels through a dedicated controller
Ideal for off-grid homes, gardens, and small farms
Easy installation and low maintenance

Technical Data

Model	Voltage	Optimum Input Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Open Circuit Voltage (VOC)	Recommended Solar Panel Power
2DPC1.5-35-24-200	24V	30V–48V	200W	1.5 m³/h	35m	0.75"	2m	<60V	≥1.3 × Pump Power
2DPC1.7-45-24-300	24V	30V–48V	300W	1.7 m³/h	45m	0.75"	2m	<60V	≥1.3 × Pump Power
2DPC1.7-64-48-400	48V	60V–90V	400W	1.7 m³/h	64m	0.75"	2m	<110V	≥1.3 × Pump Power

Note: Solar panel configuration should be selected according to local sunshine conditions and actual system requirements.

Technical Data Image

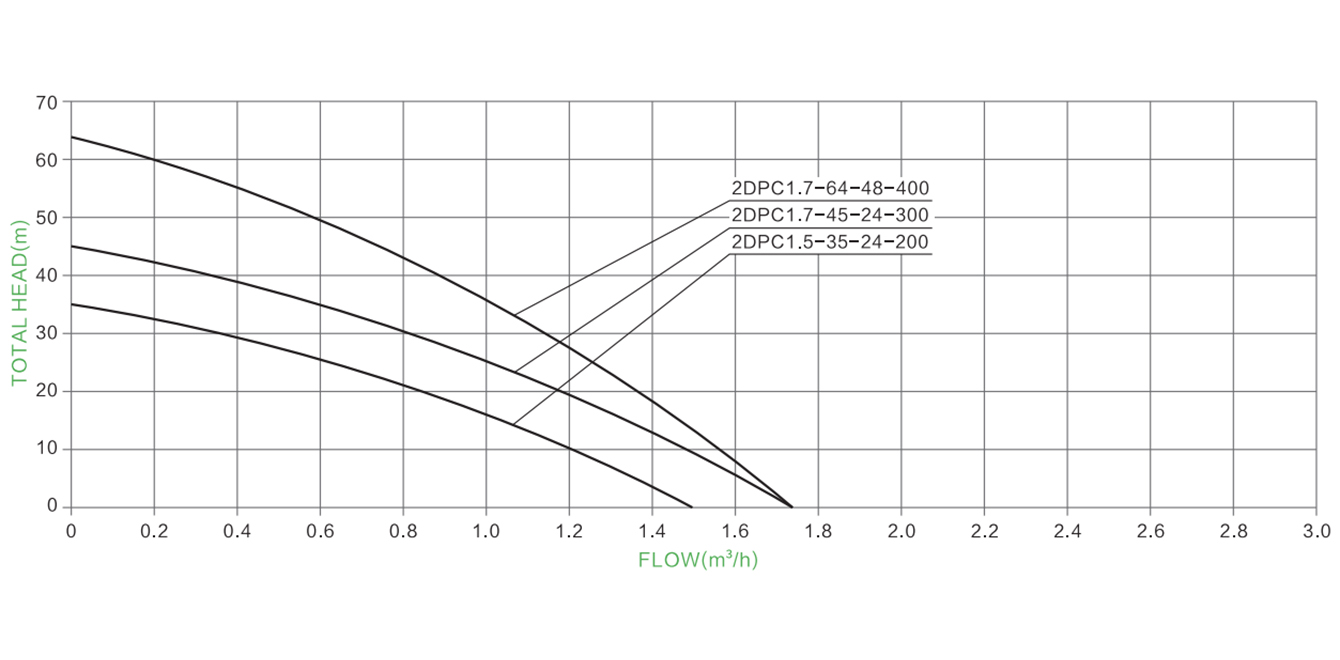

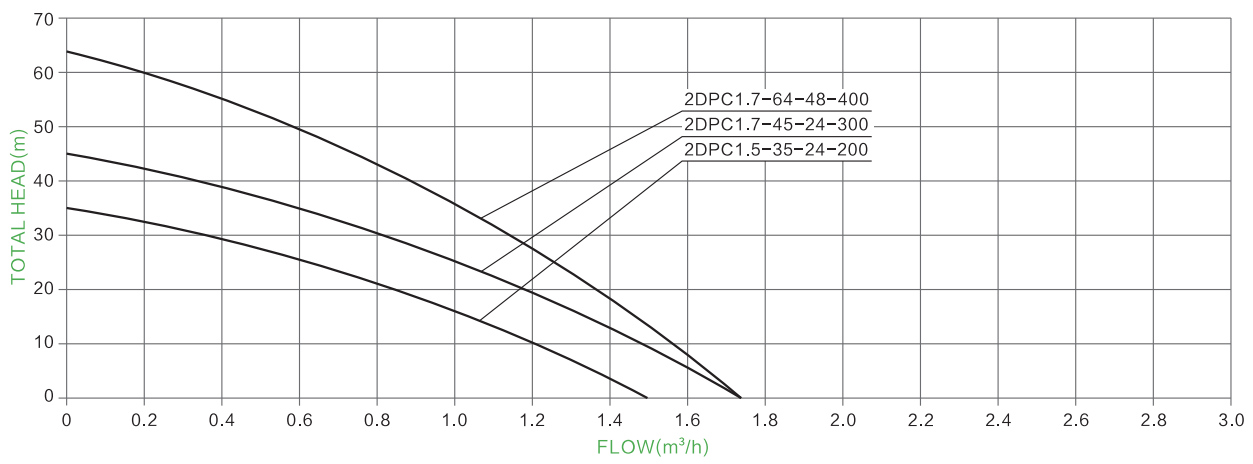

Hydraulic Performance Curve

Applications

Domestic Water Supply

Suitable for lifting clean water from wells or tanks for daily household use in remote and off-grid areas.

Garden Irrigation

Provides stable water supply for gardens, orchards, and small landscaping irrigation systems.

Small Farm Watering

A practical solar pumping option for livestock watering and light agricultural water supply projects.

Packing & Accessories

The pump is packed in a strong wooden case for safe transportation. The controller is carefully packed with protective material, and installation kits are available for convenient setup and maintenance.

Strong outer wooden case
Pump protected by thick bubble bag
Controller packed separately for safety
Installation kits available
Suitable for export shipment

Packing & Installation Kits

System Connection

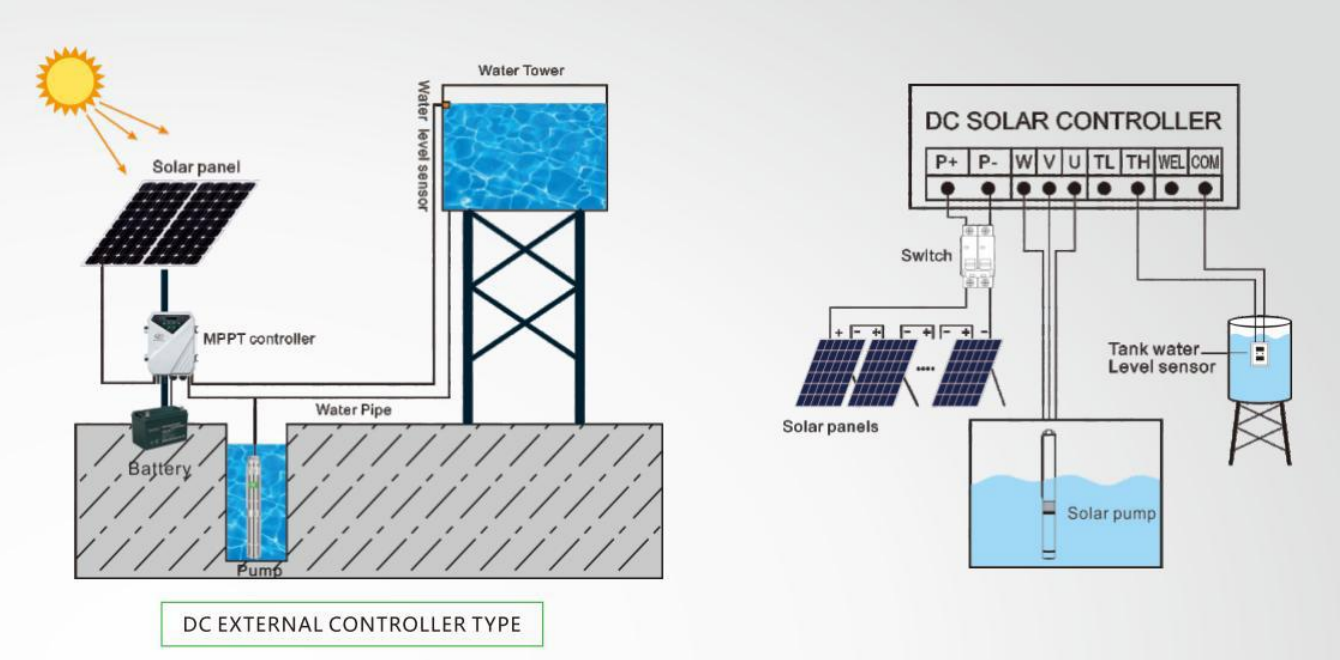

Solar Controller Wiring Diagram

How the System Works

The DC solar submersible water pump works with solar panels through a dedicated controller. The controller regulates input power and helps ensure stable operation under changing sunlight conditions.

Solar panel provides DC power input
Controller regulates and protects the system
Pump lifts water from well or borehole
Water level sensor can be connected if required
Battery connection can be added in some configurations

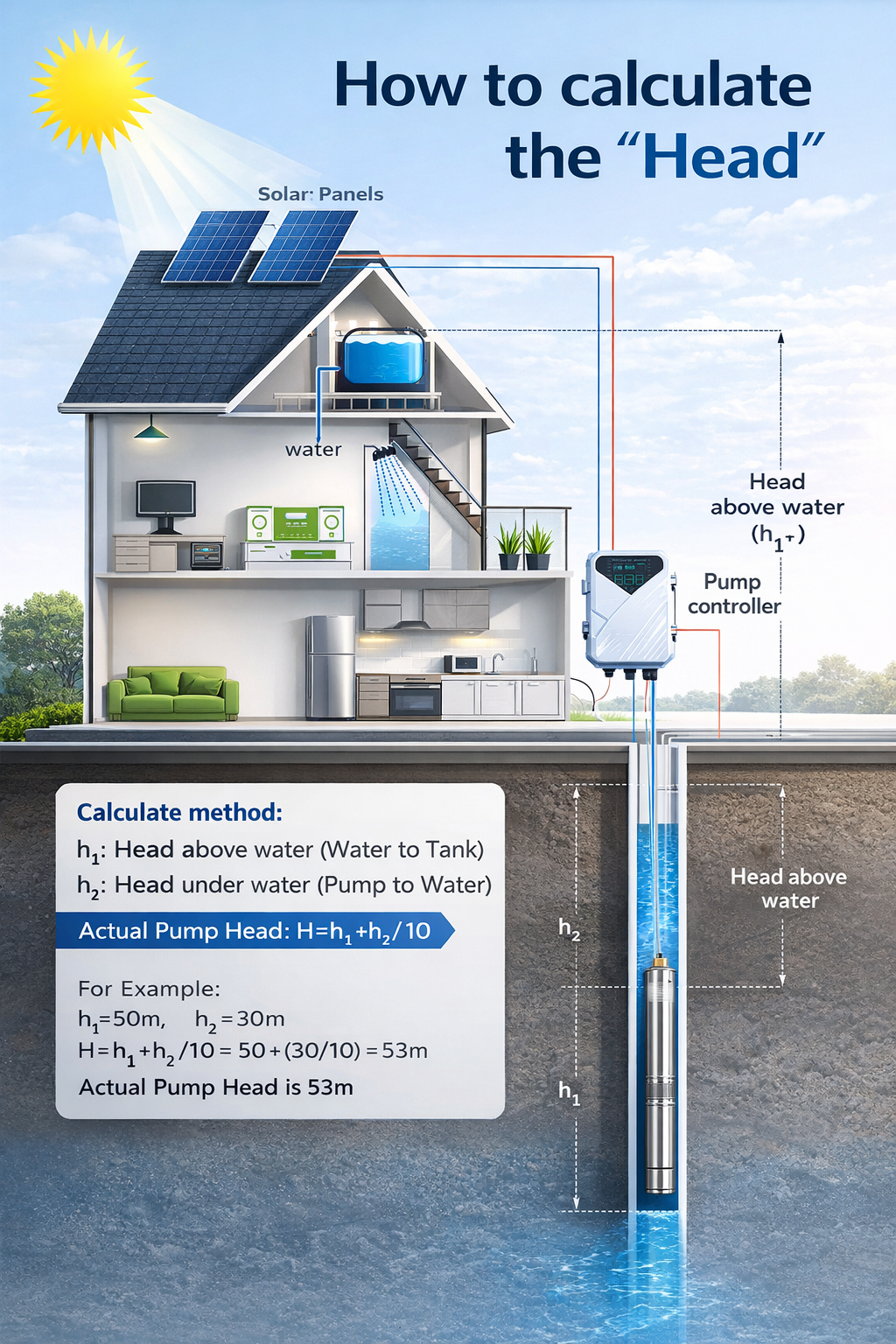

Head Calculation Reference

How to Choose the Right Model

To choose a suitable model, customers should confirm well depth, water level, required flow, lifting distance, and daily water demand. Proper model selection helps the pump system run more efficiently and reliably.

Correct solar panel and controller matching is also important, especially for projects with limited sunshine conditions or higher daily water requirements.

Check actual water level depth
Measure required vertical head accurately
Confirm required daily flow demand
Match solar panel voltage and power correctly

FAQ

1. What kind of water is this pump suitable for?

This pump is suitable for clean water applications such as domestic water supply, garden irrigation, and small farm use.

2. Can it work directly with solar panels?

The pump works with solar panels through a compatible DC controller, which manages the variable PV input and system protection. Read how a solar water pump runs without batteries before choosing the system layout.

3. Is it suitable for narrow wells?

Yes. The compact 2-inch structure makes it suitable for narrow wells and small borehole applications.

4. What information is needed before model selection?

Please provide required flow, total dynamic head, well depth, pumping water level, pipe details, daily demand and installation location. Use this solar water pump sizing guide to prepare the data.

Need a Solar Pump Solution?

Tell us your required flow, head, well depth, and application. We can help you choose the right DC solar submersible water pump model and recommend a matching solar panel configuration.
