Touch Screen Hybrid Solar Inverter

Our Touch Screen Hybrid Solar Inverter is designed for users who want a more intuitive, modern, and flexible solar storage solution. This BJ Series combines high frequency inverter technology, solar charging, battery management, load supply, and intelligent control in one integrated unit, while adding a more user-friendly touch screen interface for easier operation and clearer system visibility.

Covering the practical 3.6KW to 11KW range, this series is suitable for residential energy storage, backup systems, home solar self-consumption, small commercial installations, and selected communication or outdoor applications. It is especially attractive to buyers who want not only stable power conversion, but also a better user interface and more advanced system functions.

Compared with standard inverter models, this series highlights visual operation, stronger expansion logic, more flexible energy routing, and a better balance between performance and usability. For users who want a higher-end hybrid inverter with clearer interaction and broader application adaptability, this product line offers strong overall value.

Touch screen design for easier operation and parameter setting
Hybrid solar inverter for home and light commercial systems
Supports off-grid and grid-related operating logic
Suitable for battery and no-battery working configurations
Flexible choice for storage, backup, and self-consumption projects

Why This Series Feels More Advanced

In many real projects, users are no longer satisfied with a basic inverter that only converts power. They also want easier operation, clearer system monitoring, flexible expansion, and better compatibility with batteries, solar panels, and different load conditions. This is exactly where a touch screen hybrid inverter becomes more attractive.

The BJ Series improves daily usability through a visual touch interface, while also supporting practical functions such as BMS communication, dual PV input, no-battery working mode, WiFi expansion, and parallel operation in suitable models. It is designed for users who want both better control and stronger system flexibility.

For buyers building a more complete solar storage solution, this type of inverter offers a stronger experience value than an ordinary button-based entry-level unit.

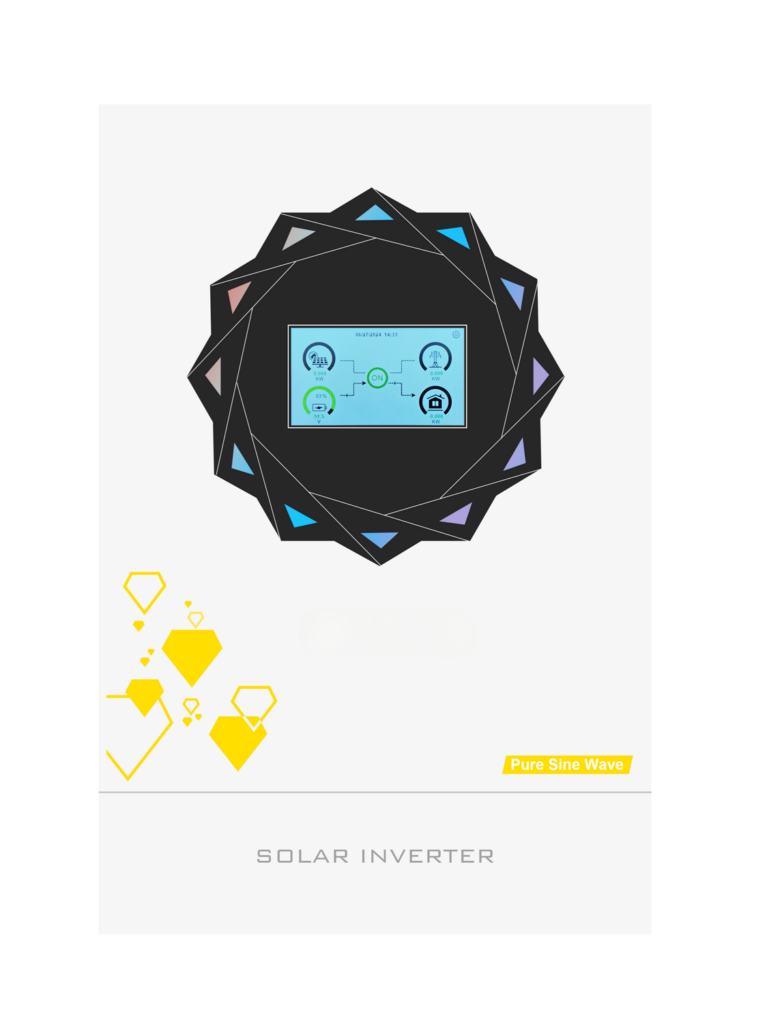

Touch Screen Hybrid Solar Inverter Product Detail Image

Product Detail / Feature Visual

Product Overview

Product Name	Touch Screen Hybrid Solar Inverter	Series	BJ Series 3.6KW–11KW
Type	High Frequency Touch Screen Hybrid Solar Inverter	Installation	Wall Mounted
Power Range	3KW / 4KW / 6.2KW / 11KW	Output Waveform	Pure Sine Wave
Battery Voltage	24Vdc / 48Vdc	PV Charging Mode	MPPT / Dual MPPT
Special Features	Touch Screen, BMS, Dual PV, WiFi, No Battery Work, Parallel Support	Application	Home Storage, Backup Power, Office, Base Station, RV, Outdoor Use
Maximum Efficiency	98%	Operating Temperature	-10°C to 50°C

Core Selling Points

Key Feature Image 1

Key Feature Image 2

Key Feature Image 3

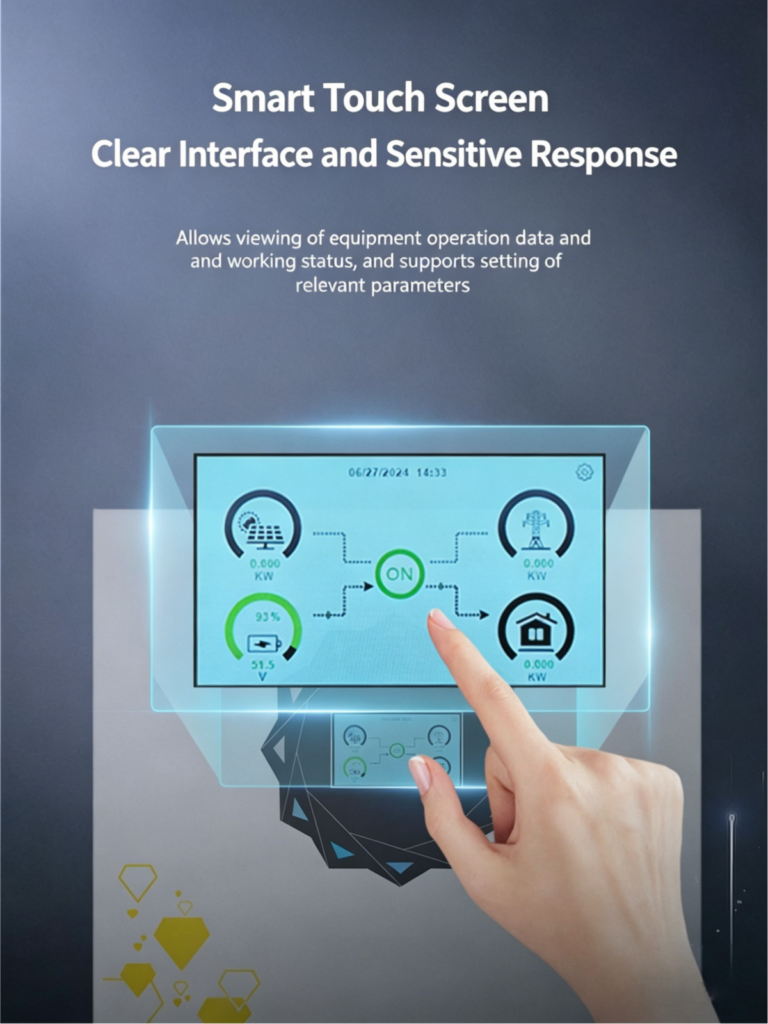

Touch screen display for clearer data view and parameter setting
Supports BMS communication with multiple lithium battery protocols

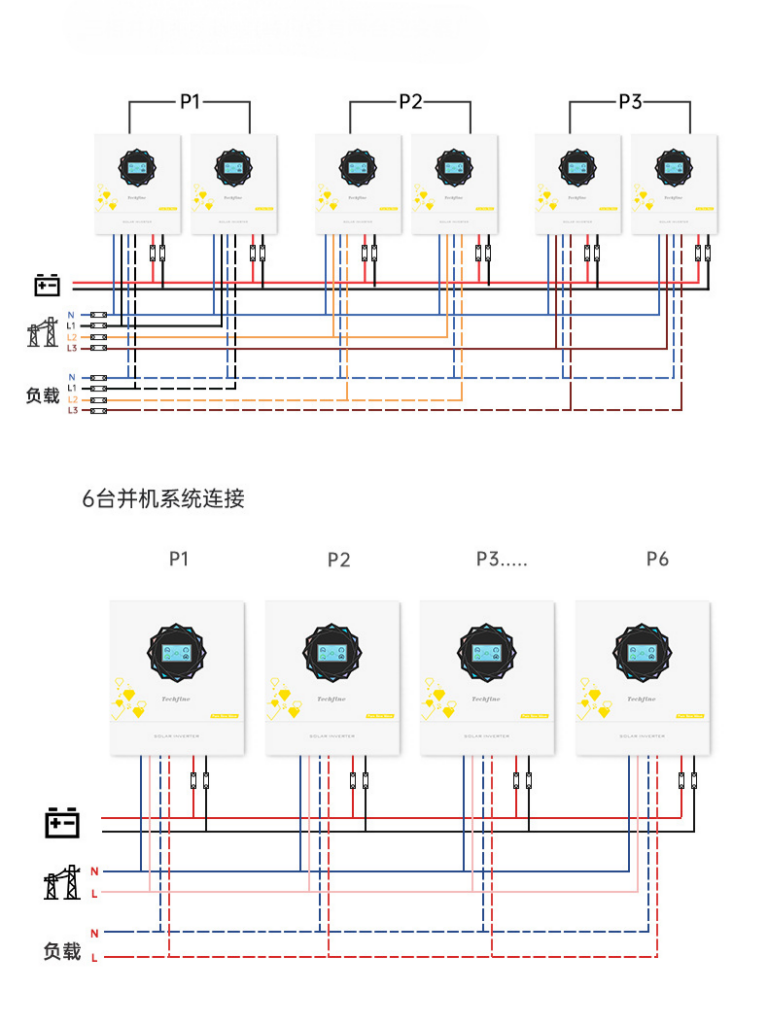

Supports six units in parallel and selected three-phase expansion logic

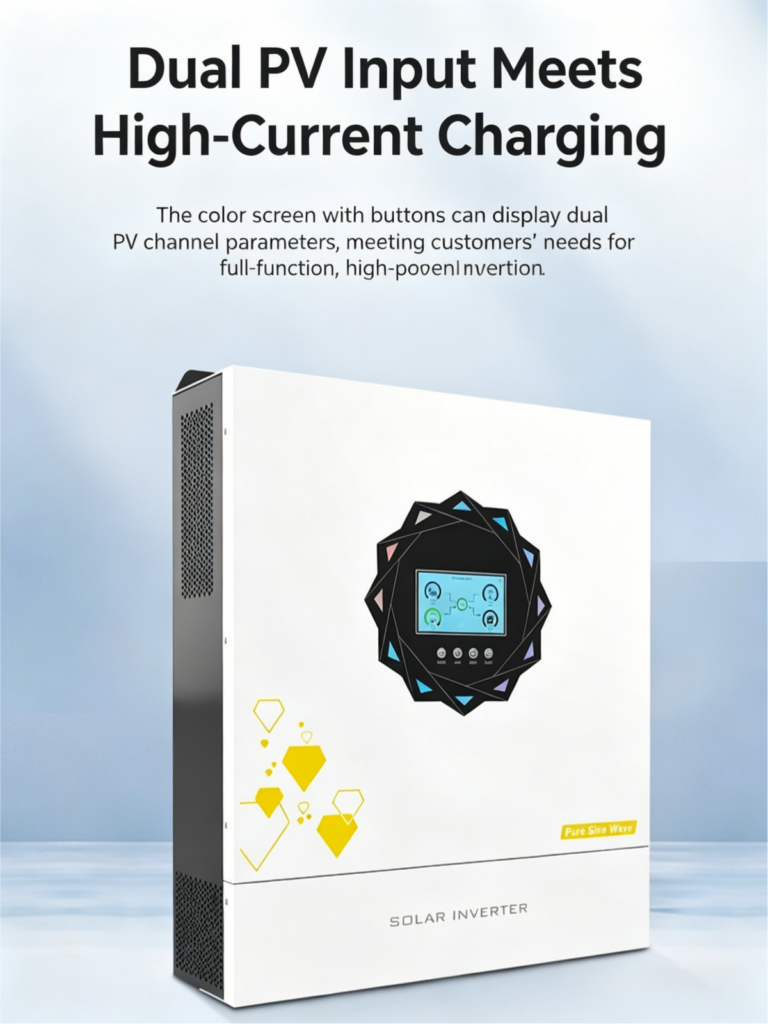

Dual PV input helps meet larger charging demand
Supports no-battery working mode for more flexible system design
Built-in energy statistics for easier system visibility
WiFi support for more convenient monitoring and management
Timer on/off and scheduled charging functions improve daily energy control

Technical Data

Model	3024SMH	4024SMH	6248SMH	11048SMH
Rated Input Voltage	220/230/240VAC
Voltage Range	90-280VAC ±3V / 170-280VAC ±3V (UPS Mode)
Battery Inverter Power	3000W	4000W	6200W	11000W
PV Inverter Power	3600W	4500W	6500W	12000W
Output Voltage	220/230/240VAC ±5%
Output Frequency	50/60Hz ±0.1%
Waveform	Pure Sine Wave
Peak Power	6000VA	8000VA	12400VA	22000VA
Battery Voltage	24Vdc	24Vdc	48Vdc	48Vdc
PV Charging Mode	MPPT	MPPT	MPPT	Dual MPPT
Max PV Input Power	5000W	6500W	8500W	2×7500W
Max PV Charging Current	100A	120A	120A	150A
Max AC Charging Current	60A	100A	100A	150A
Maximum Efficiency	98%
Communication	RS232 / Lithium BMS / WiFi Card / Dry Contact
Parallel Function	No	No	Yes	Yes
Operating Temperature	-10°C to 50°C

Note: Technical data above is organized from the uploaded BJ Series material. Please adjust the final displayed details according to the exact model you publish.

Application Scenario

Touch Screen Hybrid Solar Inverter Application Image

Application Scenario

This series is suitable for users who need a more visual and flexible hybrid solar solution across different usage environments. It can be applied in home storage systems, off-grid backup, commercial offices, communication sites, household appliances, and selected outdoor or RV-related scenarios where practical power control is important.

With touch screen interaction, dual PV input, no-battery work, and stronger expansion capability on selected models, it gives users a more advanced and easier-to-manage system platform for both daily use and backup support.

Residential solar storage systems
Home backup power and appliance support
Commercial office and shop applications
Communication base station support
Outdoor and RV power applications

How to Select the Right Touch Screen Inverter

Buyers should confirm actual load size, battery voltage, PV input requirement, whether no-battery mode is needed, and whether future parallel expansion may be required before choosing a touch screen hybrid inverter. In many projects, usability and flexibility are just as important as output power.

A well-matched model will usually make the complete solar system easier to operate, easier to monitor, and more practical for long-term use. This is especially important when users want both stable performance and a clearer control experience.

Confirm total load and daily usage pattern
Check battery voltage and charging requirement
Confirm PV input size and whether dual PV is required
Decide whether WiFi, BMS, or parallel expansion is needed

FAQ

1. What is the main advantage of this touch screen hybrid solar inverter?

Its main advantage is combining hybrid power functionality with a more intuitive touch screen interface and stronger system flexibility.

2. Can it work without batteries?

Yes. According to the uploaded material, this series supports no-battery working mode in suitable system configurations.

3. Does it support lithium battery communication?

Yes. It supports BMS communication and is designed to work with multiple lithium battery communication protocols.

4. What information is needed before model recommendation?

Please provide load size, battery type, battery voltage, PV array design, and whether WiFi or parallel support is required.

Need a Touch Screen Inverter Solution?

Tell us your load size, battery configuration, PV design, and application scenario. We can help you choose the right touch screen hybrid solar inverter and matching system solution.
