11KW Hybrid Solar Inverter

Our 11KW Hybrid Solar Inverter is designed for users who need stronger output capacity, wider system flexibility, and more advanced energy management than standard residential inverter models. It is suitable for larger homes, villas, farms, commercial sites, backup power systems, and demanding solar storage applications where stable performance and higher power support are important.

This GD Series 11KW model combines inverter output, solar charging, battery management, and intelligent control functions in one integrated unit. With dual MPPT input, battery and battery-free working modes, BMS communication, generator support, parallel capability, and WiFi expansion, it offers a much more complete solar power solution for users who want more than just basic conversion.

For buyers building a higher-capacity system, this inverter is not only a power conversion device. It is the central control unit that affects how solar energy is used, how batteries are charged, how backup logic works, and how the whole energy system performs under real operating conditions.

11KW high power hybrid solar inverter solution
Suitable for larger homes, farms, and commercial sites
Dual MPPT input for stronger PV configuration flexibility
Supports battery and no-battery operation modes
Designed for higher-capacity backup and storage systems

Why Choose the 11KW Version

When users move from ordinary residential systems to larger energy projects, the inverter must support more load, more charging capability, and more flexible control logic. That is where an 11KW class model becomes much more practical than a lower-power unit.

This model is especially suitable when the system needs stronger backup support, larger PV input, wider battery compatibility, or future expansion through parallel operation. It provides a better balance between output power, charging capability, and system manageability.

For buyers who need a serious hybrid system rather than a simple entry-level solution, this model offers much stronger real-world value.

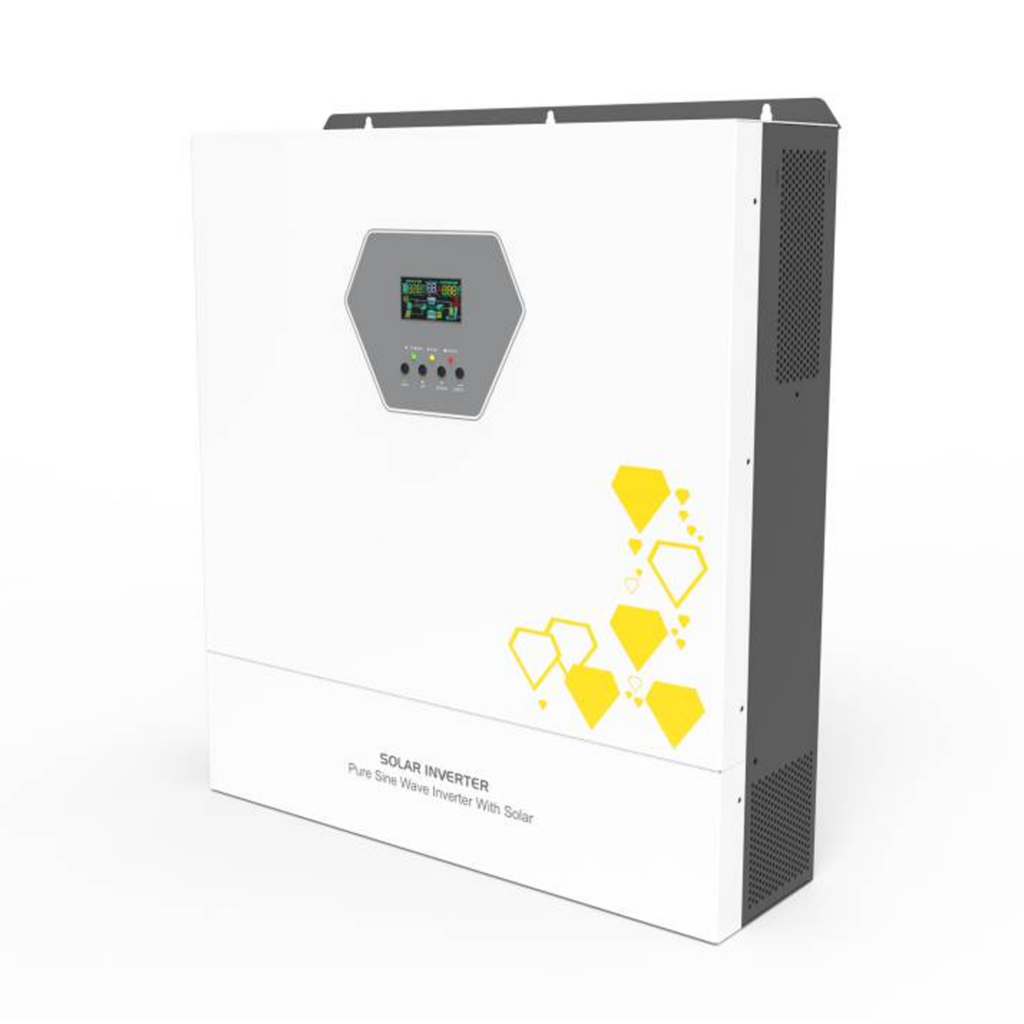

11KW Hybrid Solar Inverter Product Detail Image

Product Detail / Feature Visual

Product Overview

Product Name	11KW Hybrid Solar Inverter	Series	GD Series 11KW
Type	High Frequency Hybrid Solar Inverter	Installation	Wall Mounted
Battery Inverter Power	11000W	PV Inverter Power	12000W
Battery Voltage	48Vdc	PV Charging Mode	Dual MPPT
Max PV Input Power	2 × 7500W	Max Efficiency	98%
Special Features	BMS Communication, Parallel Support, No Battery Start, WiFi Support	Application	Large Home Storage, Farm Backup, Commercial Solar Systems

Core Selling Points

Key Feature Image

Key Feature Image 1

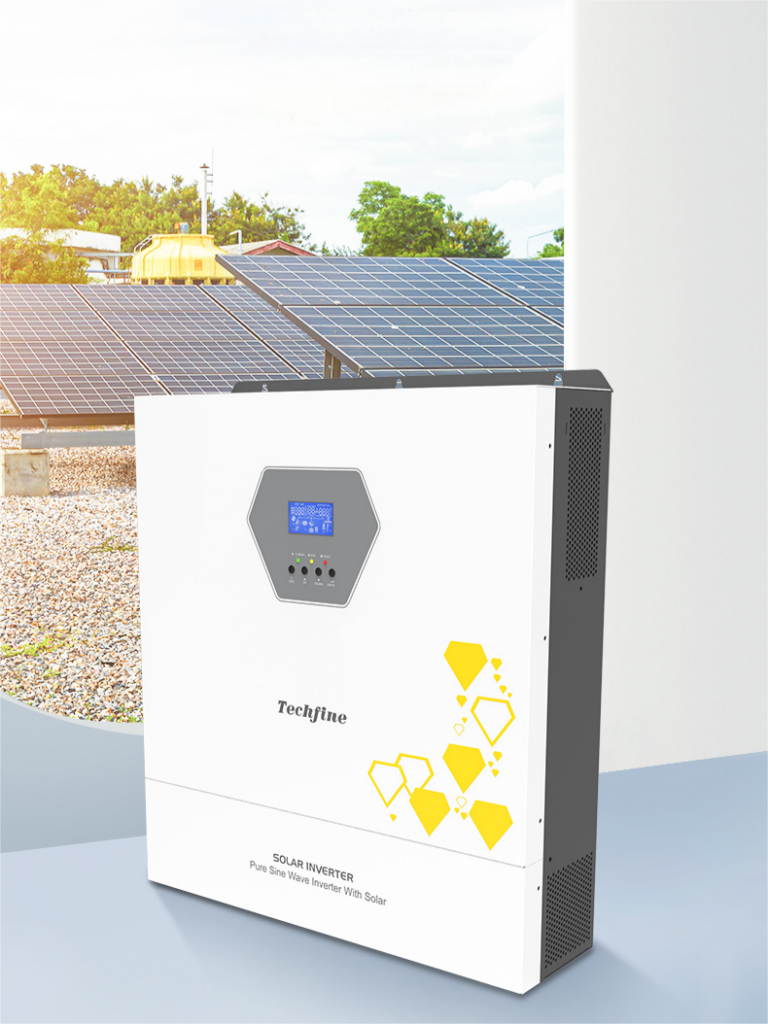

1c095107-d64f-4dbd-9181-d06ca6dbcd29

Key Feature Image 2

BMS communication for better lithium battery coordination

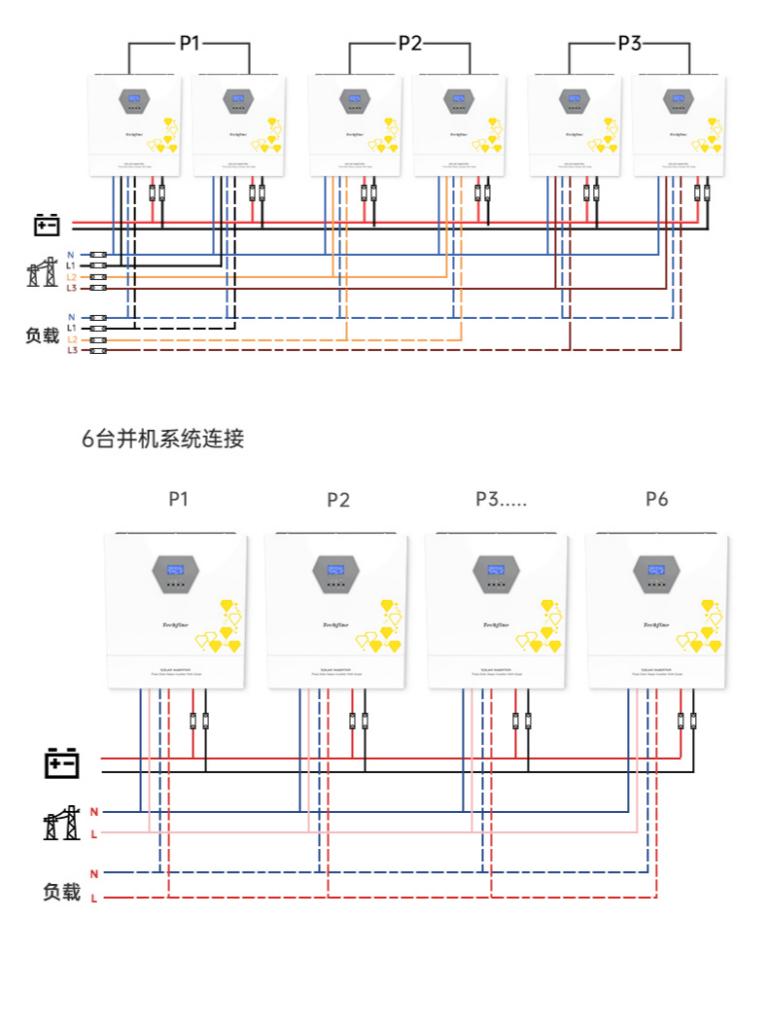

Supports parallel operation for larger system expansion
Supports no-battery start for more flexible system configuration
Dual PV input for larger charging and stronger solar integration
WiFi expansion support for easier monitoring and system management
Generator compatibility for more practical backup system design
Energy statistics and data analysis capability for clearer system visibility
Suitable for higher-load residential and commercial applications

Technical Data

Model	11048SMH
Rated Input Voltage	220/230/240VAC
Voltage Range	90-280VAC ±3V / 170-280VAC ±3V (UPS Mode)
Battery Inverter Power	11000W
PV Inverter Power	12000W
Output Voltage	220/230/240VAC ±5%
Output Frequency	50/60Hz ±0.1%
Waveform	Pure Sine Wave
Peak Power	22000VA
Battery Voltage	48Vdc
PV Charging Mode	Dual MPPT
Max PV Input Power	2 × 7500W
MPPT Input Voltage Range	90~500Vdc
Max PV Charging Current	150A
Max AC Charging Current	150A
Maximum Efficiency	98%
Communication	RS232 / BMS / WiFi Card / Dry Contact
Operating Temperature	-10~50℃

Note: Technical data above is organized from the uploaded GD Series 11KW material. Please adjust the final displayed details according to the exact version you decide to publish.

Application Scenario

11KW Hybrid Solar Inverter Application Image

Application Scenario

This 11KW hybrid inverter is especially suitable for projects that require higher output capacity, stronger charging capability, and more advanced backup logic than ordinary residential systems. It can be used in larger homes, villas, farm sites, workshops, commercial stores, and other applications where power continuity and flexible system control are important.

With dual PV input, no-battery start, generator compatibility, and parallel expansion support, it is well suited for users who want stronger system flexibility and more reliable operation under different power conditions.

Large residential energy storage systems
Villa and farmhouse backup systems
Small commercial and workshop applications
Higher-load solar self-consumption projects
Flexible battery and no-battery system configurations

How to Select the Right 11KW Inverter

Buyers should confirm the real load size, battery configuration, solar array capacity, backup requirement, and whether parallel expansion or generator coordination is needed before choosing an 11KW hybrid inverter. These factors are more important than choosing only by rated output.

A properly matched inverter will usually deliver better daily performance, lower unnecessary system cost, and stronger long-term stability than a model selected only by power number. This is especially true in larger hybrid systems where charging current, PV input flexibility, and control logic all matter.

Confirm total load and backup demand
Check battery type, voltage, and capacity
Confirm total PV size and MPPT requirement
Decide whether WiFi, BMS, generator, or parallel support is needed

FAQ

1. What is the main advantage of this 11KW hybrid solar inverter?

Its main advantage is stronger output and charging capability combined with dual MPPT, BMS communication, and flexible backup system design.

2. Can it work without batteries?

Yes. According to the uploaded material, this model supports no-battery start under suitable system conditions.

3. Is it suitable for larger backup systems?

Yes. It is suitable for larger homes, farms, commercial sites, and other projects that require higher-capacity backup and solar storage support.

4. What information is needed before model recommendation?

Please provide load size, battery type, PV design, application scenario, and whether generator or parallel support is needed.

Need an 11KW Hybrid Inverter Solution?

Tell us your load size, battery configuration, PV array, and application requirement. We can help you choose the right 11KW hybrid solar inverter and system solution.
