High Frequancy Hybrid Solar Inverter

Our Hybrid Solar Inverter is designed for users who need a more flexible and efficient solar power solution for residential, backup, and light commercial applications. This GD Series high frequency inverter integrates solar charging, battery management, AC output, and intelligent power coordination in one compact system, helping users build a practical energy storage and self-consumption solution.

Covering the popular 3KW to 6.2KW range, this series is especially suitable for home energy storage, off-grid backup, small office power systems, and projects where stable power supply and efficient solar utilization are both important. It combines pure sine wave output, MPPT charging, battery-free working capability, and flexible monitoring functions into one more user-friendly platform.

For many buyers, this type of inverter is not just a conversion device. It is the control center of the whole solar power system, influencing how efficiently PV energy is used, how batteries are charged, and how loads are supplied when sunlight changes. That is why a practical, stable, and flexible hybrid inverter is often the key part of the whole system.

Designed for residential and light commercial solar energy systems
Supports battery and battery-free working modes
Pure sine wave output for stable load compatibility
High efficiency and flexible solar input configuration
Practical solution for backup, storage, and self-consumption projects

Why This Series Is Worth Highlighting

In the most popular inverter power range, buyers usually care about a few real things: stable output, easier installation, compatibility with batteries and solar panels, better monitoring, and flexibility when system conditions change. This series is strong because it addresses those real needs instead of only focusing on basic output numbers.

It supports no-battery working mode, pure sine wave output, remote monitoring, lithium battery communication, and multi-unit parallel expansion in suitable models. That makes it much more practical for actual daily power systems where energy use patterns are not always simple.

For users who want a dependable solar inverter that is easier to match, easier to understand, and easier to use, this series offers a very strong product balance.

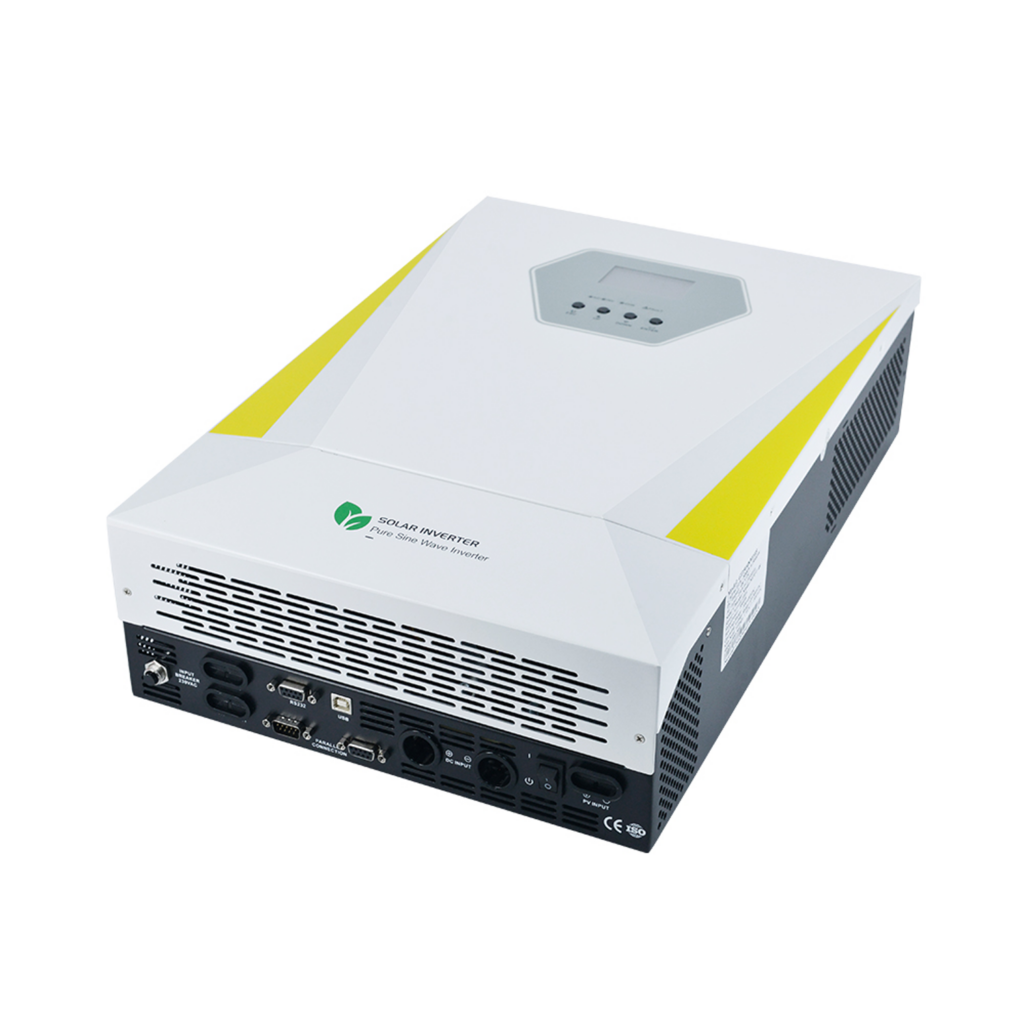

High Frequancy Hybrid Solar Inverter details

Product Detail / Main Visual

Product Overview

Product Name	Hybrid Solar Inverter	Series	GD Series 3KW–6.2KW
Type	High Frequency Hybrid Solar Inverter	Installation	Wall Mounted
Rated Power Range	3KW / 4KW / 6.2KW / 11KW	Output Waveform	Pure Sine Wave
Battery Voltage	24Vdc / 48Vdc	PV Charging Mode	MPPT / Dual MPPT
Special Features	No Battery Work, Remote Monitoring, Lithium Wake-Up, Parallel Expansion	Application	Home Storage, Backup Power, Small Office, Solar Self-Consumption
Efficiency	Up to 98%	Packing	Export Standard Packing

Core Selling Points

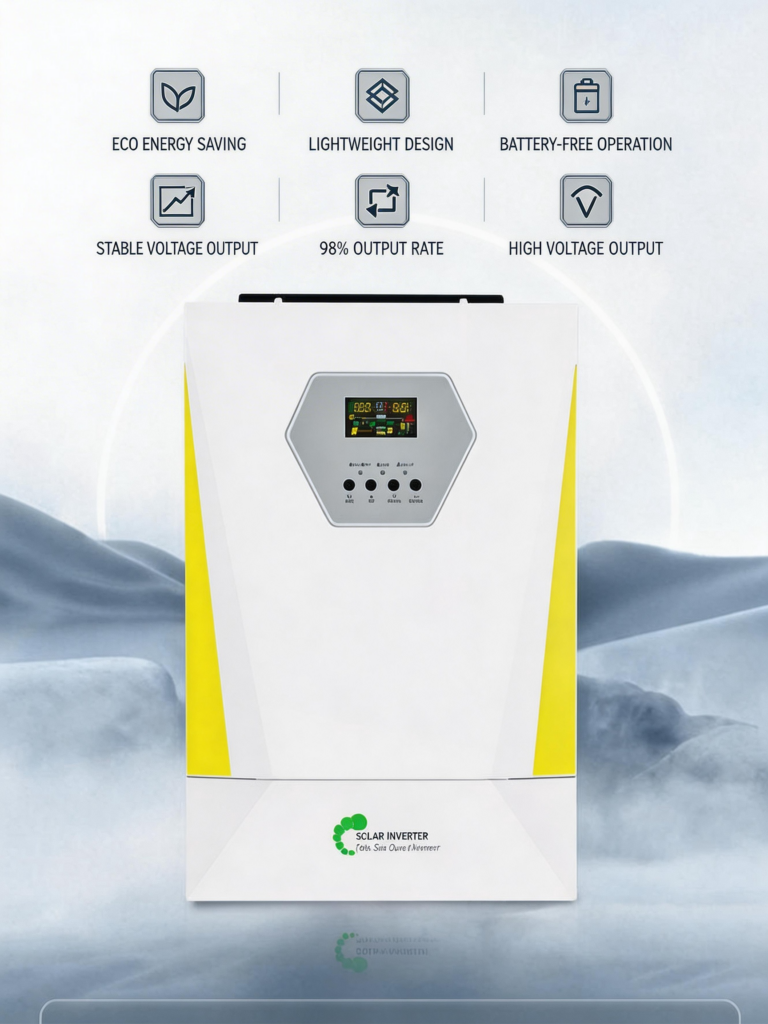

Key Feature Image 1	Key Feature Image 2

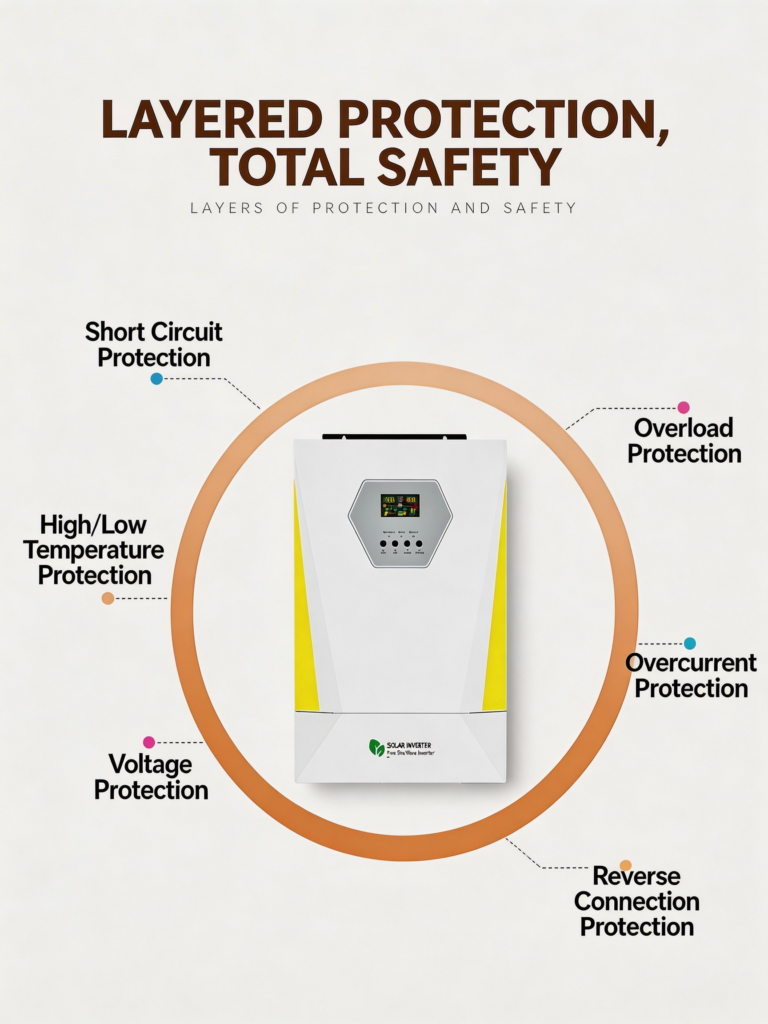

Key Feature Image 3	Key Feature Image 4
Stable voltage output for wider household appliance compatibility Supports no-battery working mode to reduce initial system cost in suitable projects Top-level MPPT with up to 500V high voltage input capability Charging current up to 100A for faster battery charging Lighter and slimmer machine design for easier installation Lithium battery wake-up function for more practical battery use Optional WiFi and remote monitoring support Supports multi-unit parallel function on suitable models

Technical Data

Model	3024SMH	4024SMH	6248SMH	11048SMH
Battery Inverter Power	3000W	4000W	6200W	11000W
PV Inverter Power	3600W	4500W	6500W	12000W
Output Voltage	220/230/240VAC ±5%	220/230/240VAC ±5%	220/230/240VAC ±5%	220/230/240VAC ±5%
Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Peak Power	6000VA	8000VA	12400VA	22000VA
Battery Voltage	24Vdc	24Vdc	48Vdc	48Vdc
PV Charging Mode	MPPT	MPPT	MPPT	Dual MPPT
Max PV Input Power	5000W	6500W	8500W	2×7500W
Max PV Charging Current	100A	120A	120A	150A
Max AC Charging Current	60A	100A	100A	150A
Maximum Efficiency	98%	98%	98%	98%

Note: Technical data above is organized from the uploaded GD Series material. Please adjust the final displayed model data according to the exact product version you decide to publish.

System Logic and Application Scenarios

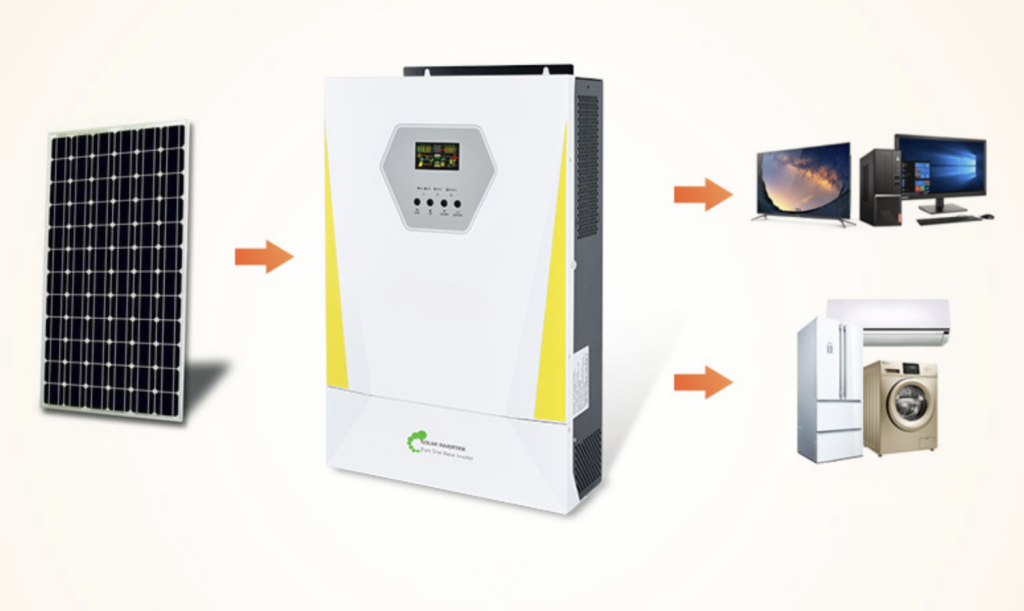

System Logic Image 1	System Logic Image 2
Application Scene 1	Application Scene 2
This series is especially suitable for users who want a more flexible residential energy solution with both solar self-consumption and backup capability. It can support households, small offices, and other low-to-medium load applications where stable daily output, battery compatibility, and smarter energy management are important. The system logic is practical because it can allocate available solar power more intelligently, support battery charging when appropriate, and keep loads supplied under different PV conditions. This makes the series suitable for users who want a better balance between energy savings, backup support, and system simplicity. Residential solar storage systems Home backup power systems Small office or shop solar power applications Battery and battery-free system configurations Users needing remote monitoring and flexible power management

How to Select the Right Hybrid Inverter

When selecting a hybrid solar inverter, buyers should first confirm the total load size, battery type, battery voltage, PV array size, and whether the system needs backup operation, battery-free working mode, or future parallel expansion. These factors are more important than choosing only by power number.

In many projects, the best inverter is not necessarily the biggest one, but the one that matches the real daily energy pattern of the user. A well-matched hybrid inverter can improve system efficiency, reduce unnecessary cost, and make the whole energy solution more practical.

Confirm total load and daily usage profile
Check battery type and voltage requirement
Confirm PV input size and charging demand
Decide whether remote monitoring or parallel function is required

FAQ

1. What is the main advantage of this hybrid solar inverter?

Its main advantage is flexible system operation, including battery and battery-free modes, stable pure sine wave output, and intelligent solar energy utilization.

2. Is it suitable for home energy storage?

Yes. It is especially suitable for home energy storage, backup power, and small-scale solar self-consumption systems.

3. Can it work without batteries?

Yes. According to the uploaded material, this series supports no-battery working mode under suitable system conditions.

4. What information is needed before model recommendation?

Please provide load size, battery type, battery voltage, PV design, and whether remote monitoring or parallel expansion is needed.

Need a Hybrid Inverter Solution?

Tell us your load requirement, battery type, PV configuration, and application scenario. We can help you choose the right hybrid solar inverter and matching system solution.
