Our 51.2V Wall Mounted LiFePO4 Battery is designed for residential solar energy storage, backup power supply, hybrid inverter systems, and off-grid energy applications. Built with lithium iron phosphate cell technology, this battery offers reliable safety, long cycle life, and stable energy performance for modern home storage projects.
The LC Series covers 100Ah, 230Ah, and 300Ah capacity options under a 51.2V platform, providing usable energy from 5.12kWh to 14.33kWh. It is suitable for users who need dependable storage capacity, flexible system expansion, and strong compatibility with mainstream solar inverter systems.
With intelligent BMS protection, communication support, wide operating temperature range, and parallel connection capability, this battery is a practical solution for home energy storage, emergency backup, and solar self-consumption systems.
Product OverviewThis wall mounted lithium battery is specially developed for home energy storage systems that require stable backup power, efficient solar energy storage, and flexible battery expansion. Compared with traditional lead-acid battery solutions, LiFePO4 technology provides better cycle life, deeper discharge capability, and more stable long-term system value. The LC Series is suitable for use with solar inverters, hybrid storage systems, and backup power systems. It can support household loads during normal power management and can also work as an important energy reserve for emergency power supply. Its clean wall mounted structure also makes installation easier for residential projects where appearance, space efficiency, and organized battery layout are important. |
 Core Product Features |
| Product Name | 51.2V Wall Mounted LiFePO4 Battery | Series | LC Series |
| Battery Chemistry | LiFePO4 | Rated Voltage | 51.2VDC |
| Capacity Options | 100Ah / 230Ah / 300Ah | Usable Energy | 5.12kWh / 11.776kWh / 14.336kWh |
| Maximum Continuous Charge/Discharge Current | 100A / 200A / 200A | Maximum Output Power | 5120W / 10240W / 10240W |
| Communication | RS232 / RS485 / CAN | Display | LCD Screen |
| Depth of Discharge | ≥95% | Protection Level | IP21 |
| Cycle Life | ≥5000 Cycles / Up to ≥8000 Cycles | Parallel Quantity | 1–15 Modules |
| Operating Temperature | Discharge: -10°C to +50°C / Charge: 0°C to +60°C | Application | Home Storage, Backup Power, Off-Grid and Solar Storage Systems |
| Model | LC100AH/51.2V | LC230AH/51.2V | LC300AH/51.2V |
|---|---|---|---|
| Usable Capacity | 5120Wh | 11776Wh | 14336Wh |
| Cell Chemistry | LiFePO4 | ||
| Maximum Continuous Charge/Discharge Current | 100A | 200A | 200A |
| Rated Voltage | 51.2VDC | ||
| Voltage Range | 43.2V–58.4VDC | ||
| Maximum Output Power | 5120W | 10240W | 10240W |
| Maximum Charge Voltage | 58.4V ± 0.2VDC | ||
| Recommended Charge Voltage | 57.6V ± 0.2VDC | ||
| Recommended Charge Current | 50A | 115A | 140A |
| Display | LCD Screen | ||
| Depth of Discharge | ≥95% | ||
| Modules Connection | 1–15 | ||
| Communication | RS232 / RS485 / CAN | ||
| Protection Level | IP21 | ||
| Cycle Life | ≥5000 | ≥5000 | ≥8000 |
| Operating Temperature | Discharge: -10°C to +50°C / Charge: 0°C to +60°C | ||
| Storage Temperature | >1 Month: 0~35°C / ≤1 Month: -20~45°C | ||
| Terminal Type | M8 | ||
| Installation Method | Wall Mounted | Wall Mounted + Movable | Movable |
| Dimensions (D×W×H) | 165×365×610 mm | 220×395×650 mm | 230×395×830 mm |
| Net Weight | 52 kg | 96 kg | 112 kg |

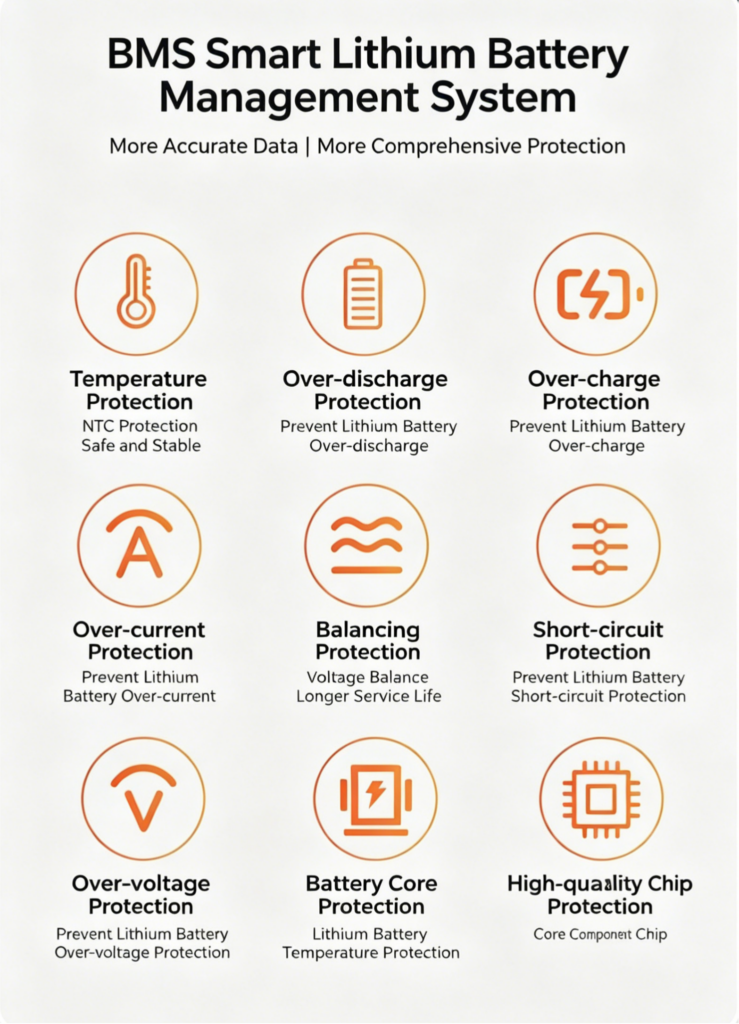

 Intelligent BMS and Multi-Protection |
Intelligent BMS ProtectionThe LC Series battery integrates an intelligent battery management system designed to improve operating safety, battery consistency, and long-term stability. It continuously monitors battery status and helps the storage system operate more safely under different charging and discharging conditions.
|

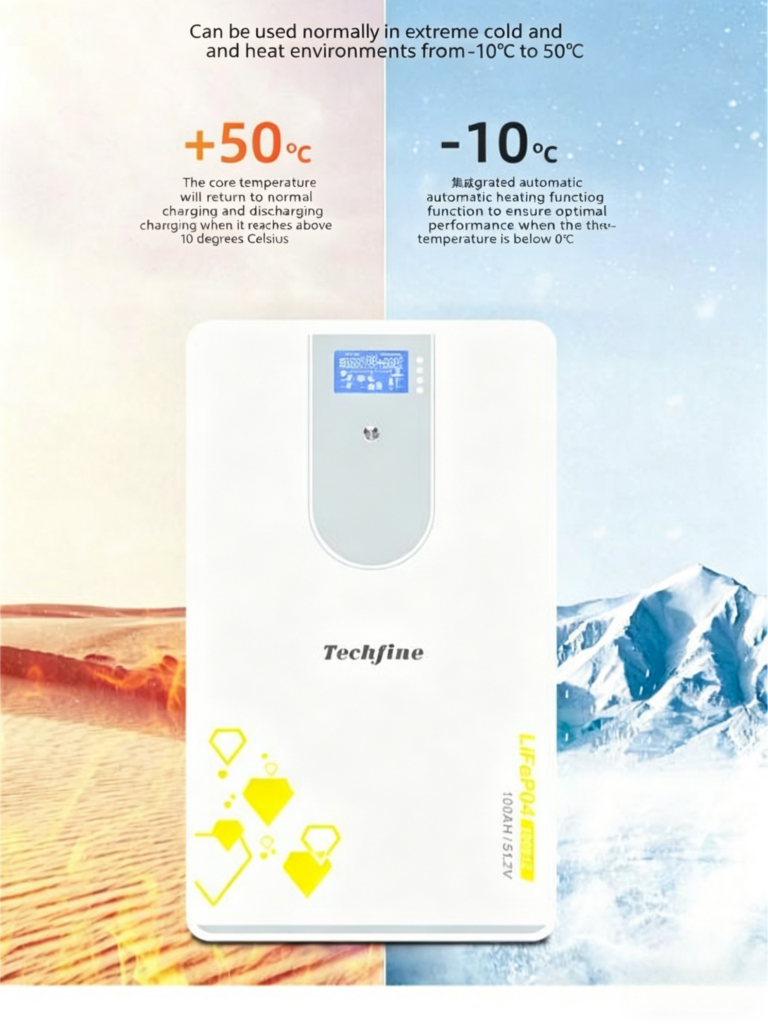

 Wide Temperature Adaptability |
Reliable Performance in Different EnvironmentsAccording to the provided material, the LC Series is designed to operate in a broad working temperature range. This helps improve installation flexibility for storage projects in regions with seasonal temperature changes or more demanding environmental conditions. Whether the battery is used in residential backup, photovoltaic storage, or remote energy support applications, stable thermal management and system protection help improve overall reliability. This is especially useful for users who want one battery solution that can support daily cycling, backup reserve, and solar storage integration over the long term. |
|
Product Appearance
|

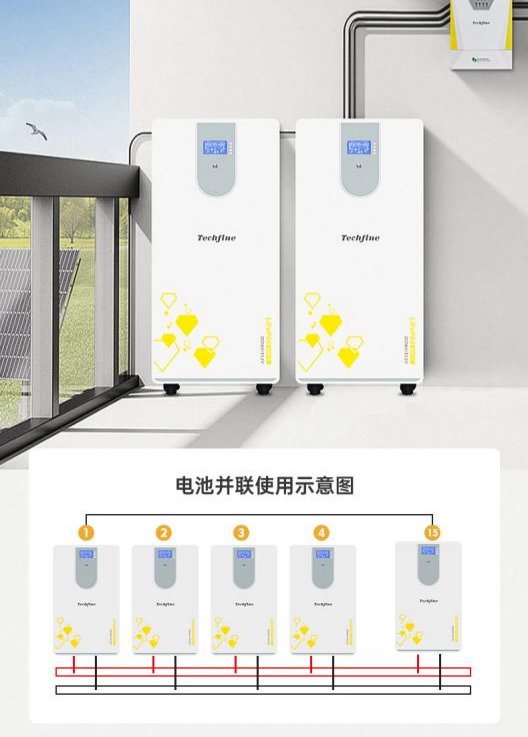

Design and Expansion AdvantagesThe wall mounted design makes the battery easier to integrate into residential storage rooms, utility areas, and energy system walls where clean installation and efficient space usage matter. It also helps present a more organized appearance for complete solar storage solutions. Another important advantage of the LC Series is flexible expansion. Based on the uploaded material, the battery supports parallel connection from 1 to 15 modules, allowing users to increase system capacity according to project growth and future energy demand. This gives the product a strong position for both entry-level home storage and larger residential backup energy systems. |

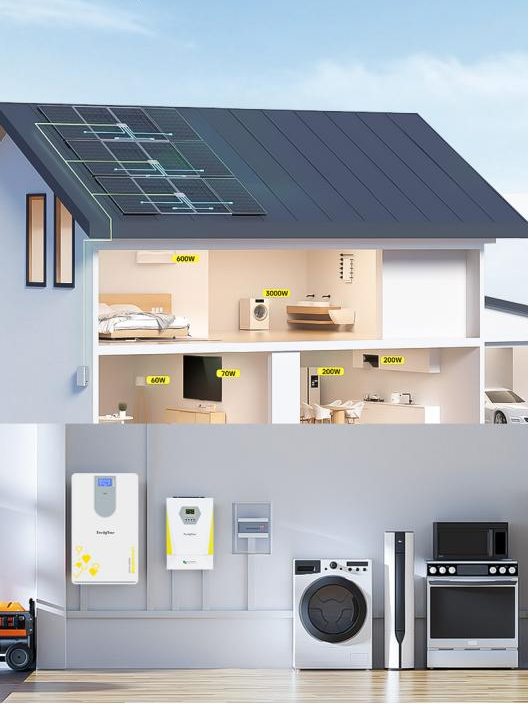

This 51.2V wall mounted lithium battery is suitable for a wide range of solar and storage applications where safe energy backup and stable battery performance are required.
1. What battery chemistry is used in this series?
2. Which capacity options are available?
3. Can the battery work with solar inverters?
4. Can more batteries be added later?
Tell us your inverter type, required battery capacity, installation preference, and project application. We can help recommend the right LC Series battery model for your energy storage system.
