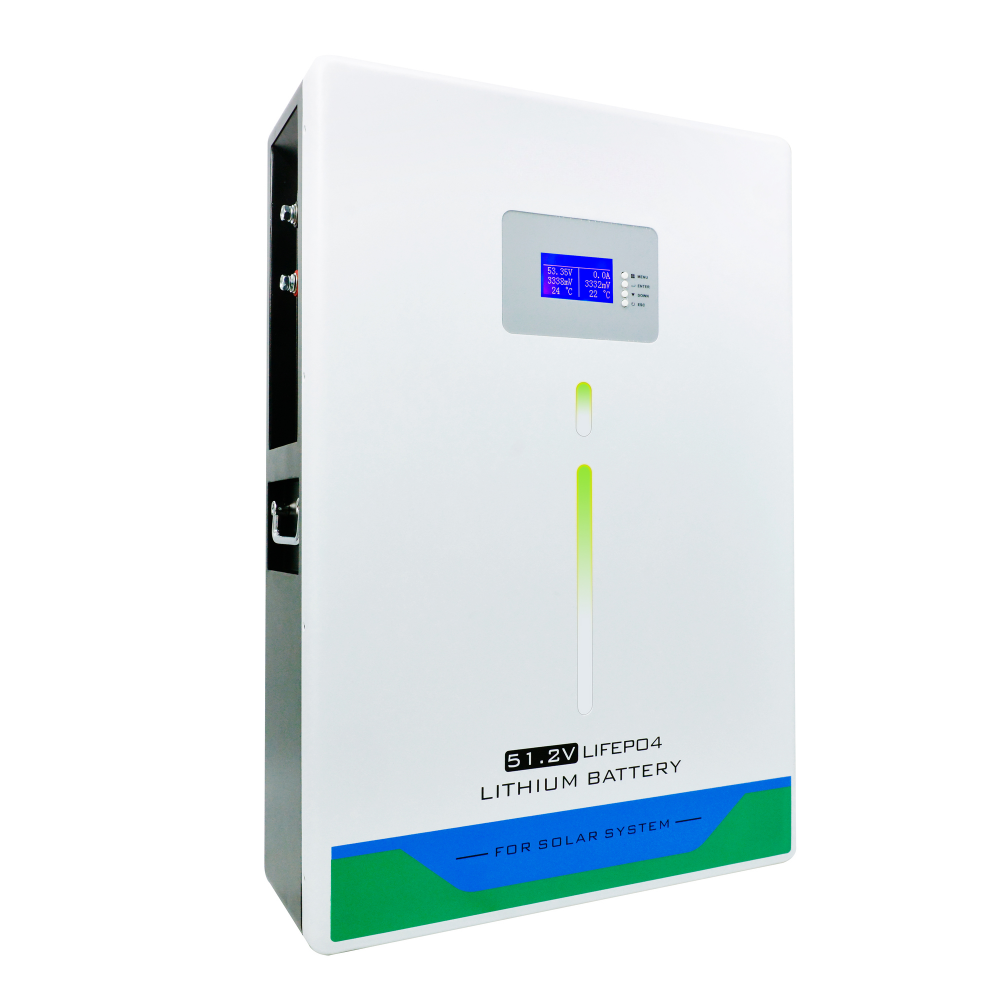

Main Product Image

Wall Mounted Lithium Battery

Our Wall Mounted Lithium Battery is designed for residential energy storage, backup power, off-grid solar systems, and emergency home power applications. Built with LiFePO4 cells, this battery series offers long cycle life, stable performance, and practical compatibility with a wide range of hybrid solar inverters and storage systems.

The LB Series covers voltage options from 25.6V to 51.2V and capacity options from 2.56kWh to 14.33kWh, making it suitable for both entry-level residential storage and larger home backup systems. Its wall mounted structure helps save space and makes installation cleaner and more attractive for indoor energy storage projects.

With built-in battery management functions, multiple safety protections, communication support, and long-term cycling capability, this product is a practical choice for customers looking for a stable and scalable home energy storage battery solution.

Wall mounted lithium battery for residential energy storage
LiFePO4 chemistry with long service life
Supports backup power and solar storage applications
Compact installation with clean indoor appearance
Suitable for inverter-compatible home battery systems

Why This Battery Fits Home Storage Projects

Residential battery buyers usually care about four things most: safety, service life, appearance, and compatibility. This wall mounted lithium battery is designed around exactly those priorities. It provides a neat installation style for home environments while also delivering the durability and stability expected from a LiFePO4 battery platform.

Compared with bulky traditional battery cabinets, a wall mounted structure is easier to position for modern home solar systems. It is more space-saving, looks cleaner, and works well with hybrid inverter installations in garages, utility rooms, storage rooms, and other residential areas.

For customers who want a practical home storage battery with long cycle life and clear expansion potential, this series is a strong product line to present on an overseas website.

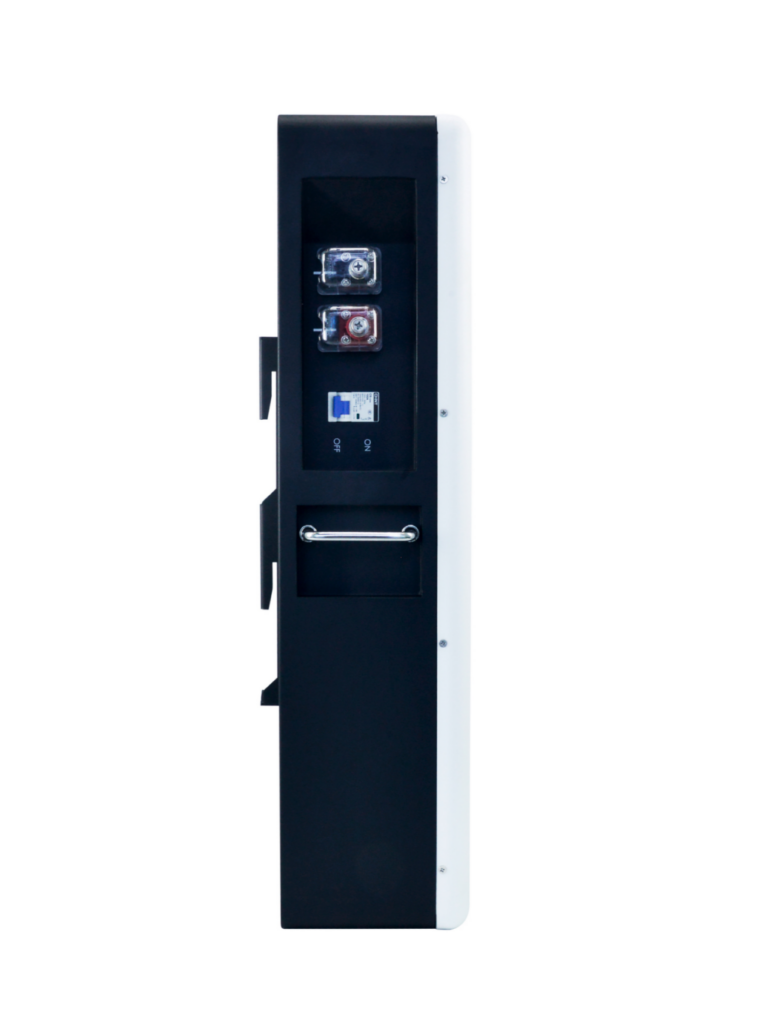

Wall Mounted Lithium Battery Feature Image

Product Feature Overview

Product Overview

Product Name	Wall Mounted Lithium Battery	Series	LB Series
Battery Type	LiFePO4	Installation	Wall Mounted
Voltage Options	25.6V / 51.2V	Energy Range	2.56kWh–14.33kWh
Cycle Life	≥5000 Cycles	Parallel Support	Up to 15 Modules
Communication	RS232 / RS485 / CAN	Protection Level	IP21
Application	Home Energy Storage, Backup Power, Off-Grid Solar System, Emergency Power	Display	LED / LCD by Model

Key Features

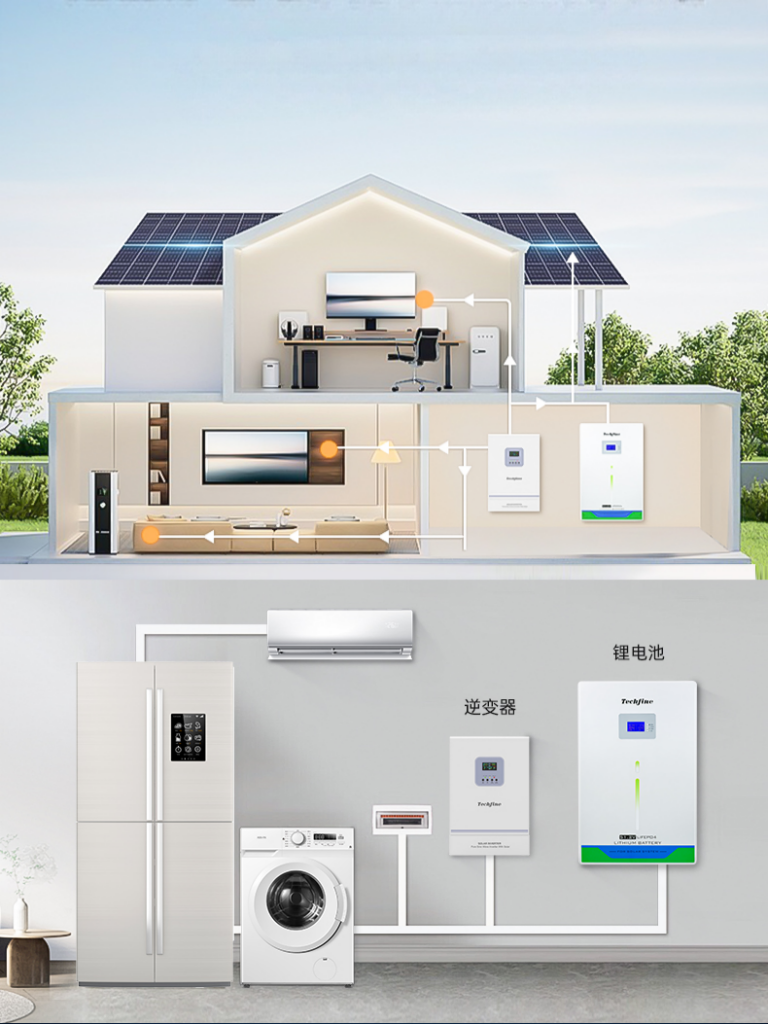

Wall Mounted Lithium Battery application

Battery Protection Features

Large capacity wall mounted LiFePO4 battery design
SOC and SOH estimation support for better system visibility
Low power consumption with multiple sleep and wake-up modes
Over-current, short-circuit, buzzer warning, and temperature monitoring protection
RS485, CAN, and upper computer monitoring support
Battery balancing function for improved long-term consistency
Cycle count and capacity calculation support
Compatible with many inverter communication protocols

Technical Data

Model	LB100AH/51.2VTA	LB230AH/51.2V	LB300AH/51.2V	LB100AH/25.6V	LB230AH/25.6V
Usable Capacity	5120Wh	11776Wh	14336Wh	2560Wh	5888Wh
Cell Chemistry	LiFePO4
Rated Voltage	51.2VDC			25.6VDC
Maximum Continuous Charge/Discharge Current	100A	100A/200A	200A	100A	200A
Maximum Output Power	5120W	5120W / 10240W	10240W	2560W	5120W
Recommended Charge Current	50A	100A / 115A	140A	50A	115A
Display	LED Indicator + LCD Screen			LCD Screen
Depth of Discharge	≥95%
Module Parallel Quantity	1–15
Communication	RS232 / RS485 / CAN
Protection Level	IP21
Cycle Life	≥5000	≥5000	≥8000	≥5000	≥5000
Operating Temperature	Discharge: -10°C to +50°C / Charge: 0°C to +60°C

Note: Technical data above is organized from the uploaded LB Series material. Please adjust the final displayed details according to the exact model you publish.

Battery Management & Safety

Wall Mounted Lithium Battery BMS Image

Battery Management System

A reliable residential storage battery needs more than capacity. It also needs a dependable battery management system that can monitor voltage, current, temperature, and operating status in real time. The LB Series is designed with this logic in mind.

Through built-in management and communication functions, the battery can provide better safety, better consistency, and better long-term operating stability for solar storage systems.

Temperature protection
Over-discharge protection
Over-charge protection
Over-current protection
Balancing protection
Short-circuit protection
Over-voltage protection
Cell-level protection and monitoring

Applications

Wall Mounted Lithium Battery Emergency Power Image

Home Backup Power Application

Wall Mounted Lithium Battery Wall Installation Image

Wall Mounted Energy Storage Application

This wall mounted battery series is especially suitable for home energy storage systems where clean installation, backup reliability, and long battery life are important. It can work with solar inverters for residential self-consumption, backup during grid outage, and off-grid or hybrid home power systems.

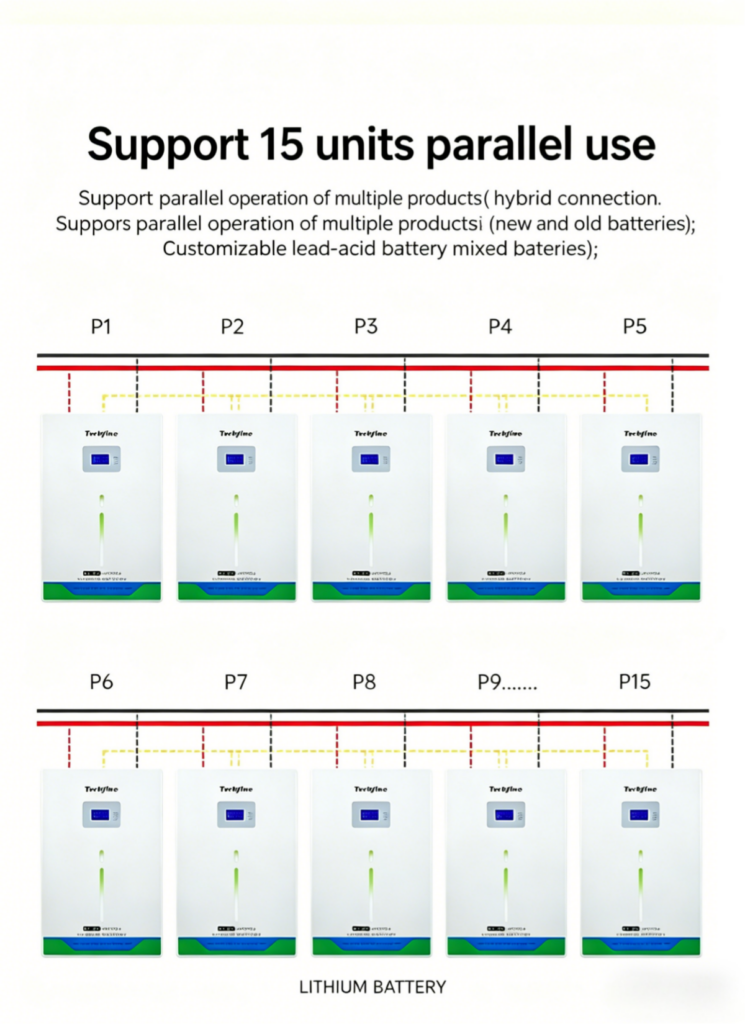

With support for parallel connection up to 15 units, the system can also scale from smaller home use to larger residential or light commercial storage requirements.

Home solar energy storage
Residential backup power
Off-grid home systems
Emergency power supply
Expandable residential battery bank

FAQ

1. What type of battery cells are used in this wall mounted battery?

This series uses LiFePO4 battery cells, which are widely chosen for energy storage applications because of their safety, long cycle life, and stable performance.

2. Can this battery work with hybrid solar inverters?

Yes. According to the uploaded material, it supports communication protocols compatible with many inverter brands and includes RS232, RS485, and CAN communication.

3. Can multiple battery units be connected together?

Yes. This series supports parallel connection from 1 to 15 modules, making it suitable for scalable home storage solutions.

4. What information is needed before battery recommendation?

Please provide inverter model, system voltage, required storage capacity, daily load, and whether backup time or parallel expansion is needed.

Need a Home Energy Storage Battery Solution?

Tell us your inverter model, battery voltage, target storage capacity, and application scenario. We can help you choose the right wall mounted lithium battery solution for your solar storage project.
