DC Solar Submersible Water Pump

Our DC Solar Submersible Water Pump is designed for efficient clean water lifting in off-grid and remote areas. Powered by solar energy through a DC controller, it is an ideal solution for domestic water supply, garden irrigation, livestock watering, and small agricultural applications.

This 2-inch brushless solar pump features a stainless steel pump body, brass outlet components, and a plastic impeller structure for stable operation and long service life. Its compact design makes it suitable for narrow wells and small borehole systems where reliable daily water supply is required.

2-inch DC brushless solar submersible pump
Stainless steel body with brass outlet fitting
Plastic impeller for smooth clean water pumping
Suitable for household water supply and irrigation use
Compatible with solar panel and DC controller systems

Product Overview

Product Name	DC Solar Submersible Water Pump	Series	2DPC
Type	2 Inch DC Brushless Solar Pump with Plastic Impeller	Pump Diameter	2 Inch
Pump Body Material	Stainless Steel	Outlet Material	Brass
Impeller Material	Plastic	Power Supply	Solar Panel + DC Controller
Application	Drinking Water Supply, Garden Irrigation	Warranty	2 Years
Certificates	CE, GS, RoHS	Packing	Wooden Case

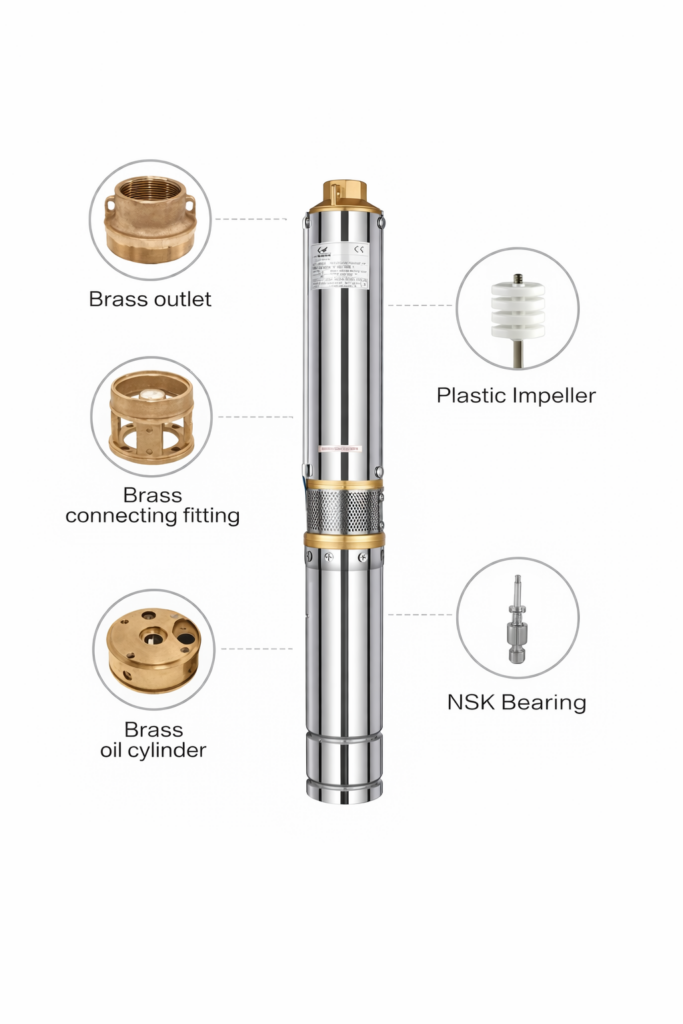

Product Structure / Parts Detail

Key Features

Brushless DC motor for stable and energy-saving performance
Compact 2-inch design suitable for narrow wells
Stainless steel body for corrosion resistance and longer service life
Brass outlet and fittings for durable connection
Plastic impeller designed for clean water applications
Works with solar panels through a dedicated controller
Ideal for off-grid homes, gardens, and small farms
Easy installation and low maintenance

Technical Data

Model	Voltage	Optimum Input Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Open Circuit Voltage (VOC)	Recommended Solar Panel Power
2DPC1.5-35-24-200	24V	30V–48V	200W	1.5 m³/h	35m	0.75"	2m	<60V	≥1.3 × Pump Power
2DPC1.7-45-24-300	24V	30V–48V	300W	1.7 m³/h	45m	0.75"	2m	<60V	≥1.3 × Pump Power
2DPC1.7-64-48-400	48V	60V–90V	400W	1.7 m³/h	64m	0.75"	2m	<110V	≥1.3 × Pump Power

Note: Solar panel configuration should be selected according to local sunshine conditions and actual system requirements.

Technical Data Image

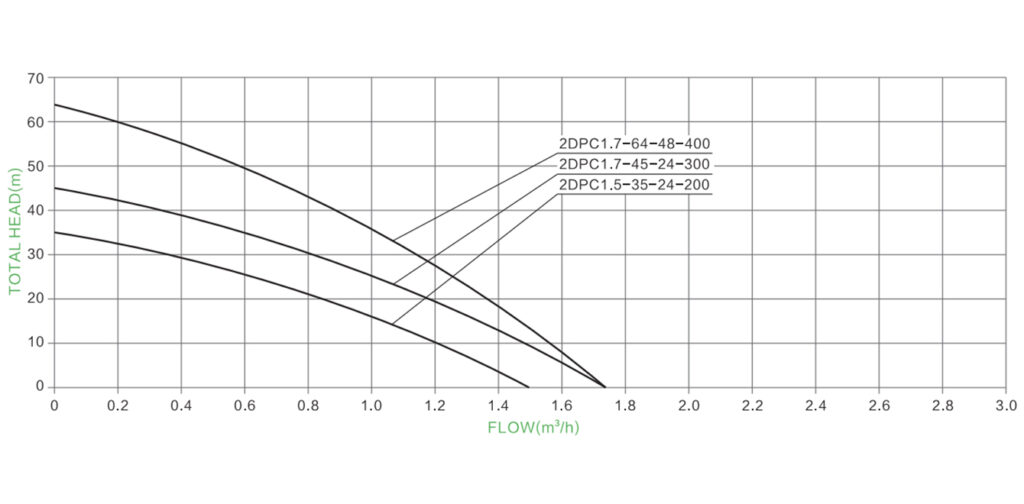

Hydraulic Performance Curve

Applications

Domestic Water Supply

Suitable for lifting clean water from wells or tanks for daily household use in remote and off-grid areas.

Garden Irrigation

Provides stable water supply for gardens, orchards, and small landscaping irrigation systems.

Small Farm Watering

A practical solar pumping option for livestock watering and light agricultural water supply projects.

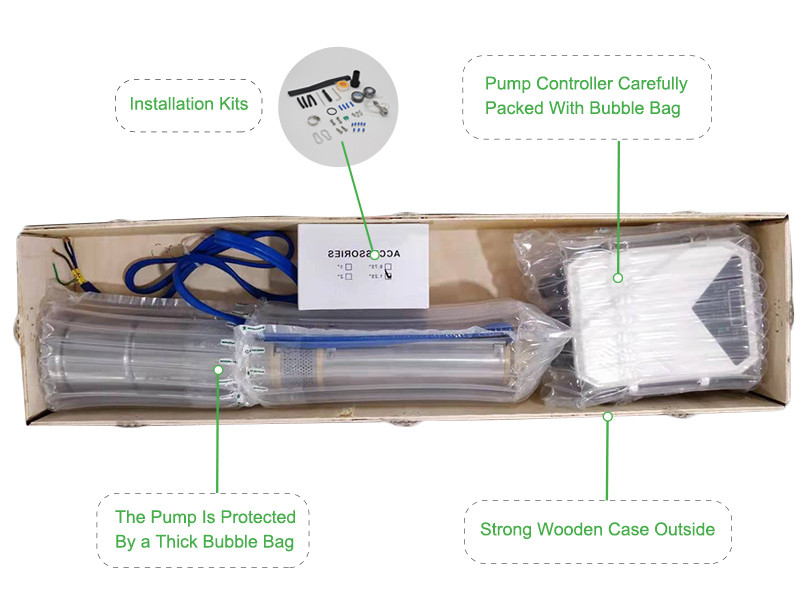

Packing & Accessories

The pump is packed in a strong wooden case for safe transportation. The controller is carefully packed with protective material, and installation kits are available for convenient setup and maintenance.

Strong outer wooden case
Pump protected by thick bubble bag
Controller packed separately for safety
Installation kits available
Suitable for export shipment

Packing & Installation Kits

System Connection

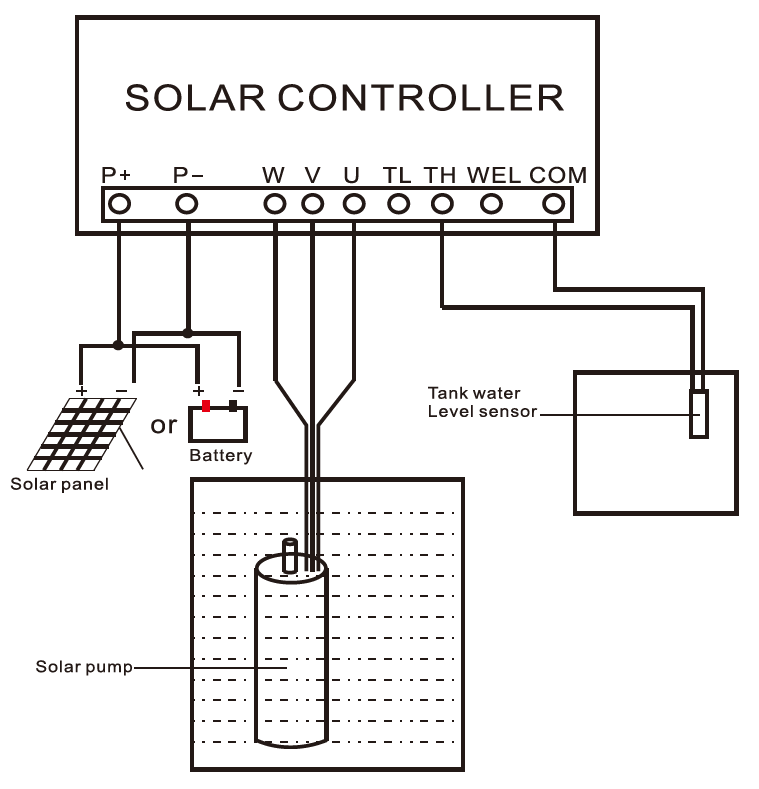

Solar Controller Wiring Diagram

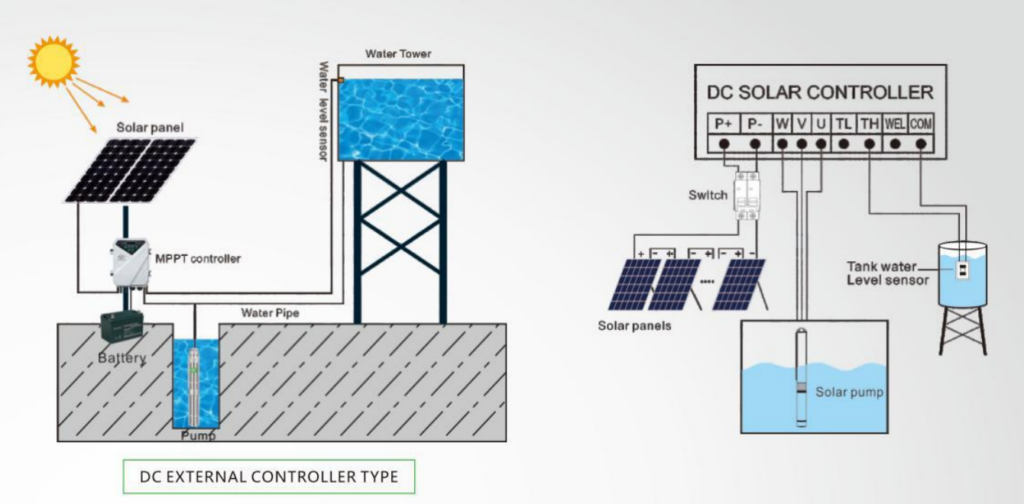

How the System Works

The DC solar submersible water pump works with solar panels through a dedicated controller. The controller regulates input power and helps ensure stable operation under changing sunlight conditions.

Solar panel provides DC power input
Controller regulates and protects the system
Pump lifts water from well or borehole
Water level sensor can be connected if required
Battery connection can be added in some configurations

Head Calculation Reference

How to Choose the Right Model

To choose a suitable model, customers should confirm well depth, water level, required flow, lifting distance, and daily water demand. Proper model selection helps the pump system run more efficiently and reliably.

Correct solar panel and controller matching is also important, especially for projects with limited sunshine conditions or higher daily water requirements.

Check actual water level depth
Measure required vertical head accurately
Confirm required daily flow demand
Match solar panel voltage and power correctly

FAQ

1. What kind of water is this pump suitable for?

This pump is suitable for clean water applications such as domestic water supply, garden irrigation, and small farm use.

2. Can it work directly with solar panels?

The pump works with solar panels through a DC controller, which helps regulate power input and protect the system.

3. Is it suitable for narrow wells?

Yes. The compact 2-inch structure makes it suitable for narrow wells and small borehole applications.

4. What information is needed before model selection?

Please provide required flow, head, well depth, water level, and local solar conditions so we can recommend the suitable pump model.

Need a Solar Pump Solution?

Tell us your required flow, head, well depth, and application. We can help you choose the right DC solar submersible water pump model and recommend a matching solar panel configuration.
